GC41-6x12 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x M18x1.5 Thread Size DIN Light Universal Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

GC41-6x12 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x M18x1.5 Thread Size DIN Light Universal Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating

Sale price$23.02
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — Bite to the Wire

GC41 Grip Crimp Coupling — DIN Light Universal Seat, Female Swivel, 45° Elbow

GC41 is the DIN Light Universal Seat, Female Swivel, 45° Elbow configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.

1

What are the main product features?
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
  • Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.
2

Which sizes are available?

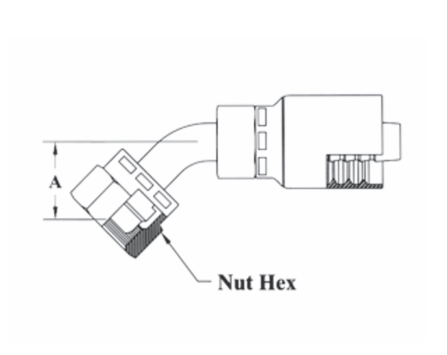

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC41-4x8* 1/4" 8mm M14x1.5 0.97" 11/16" 4G-8FDLORX45 1C443-8-4
GC41-4x10 1/4" 10mm M16x1.5 0.96" 3/4" — 1C443-10-4
GC41-6x10* 3/8" 10mm M16x1.5 0.96" 3/4" 6G-10FDLORX45 1C443-10-6
GC41-6x12 3/8" 12mm M18x1.5 1.00" 7/8" — 1C443-12-6
GC41-8x15* 1/2" 15mm M22x1.5 1.18" 1-1/16" 8G-15FDLORX45 1C443-15-8
GC41-10x18 5/8" 18mm M26x1.5 1.25" 1-1/4" — 1C443-18-10
GC41-12x22 3/4" 22mm M30x2.0 1.41" 1-1/2" — 1C443-22-12
i
Does not have groove for optional O-ring The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Additional Product Data:

Series:
  • Grip Crimp Series
Shape:

45 Degree

Ends Configuration:
  • L12 Female DIN
  • 3/8in Hose Barb
