GC17-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC 37° Female Swivel | 90° Elbow | Trivalent Zinc Plating

GC17-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC 37° Female Swivel | 90° Elbow | Trivalent Zinc Plating

Sale price$21.59

Couplamatic Systems Inc.
Grip Crimp Series - JIC 37° - 90° Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $20.29
40–79 $18.35
80+ $16.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Female JIC
  • 1/2in Hose Barb
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

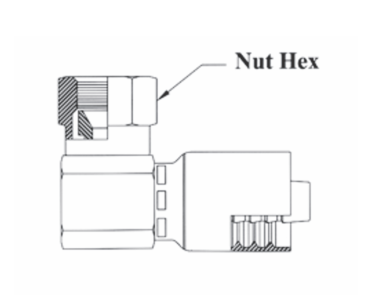

Part Number Hose ID Thread Size Tube OD Nut Hex
GC17-6x6 3/8" 9/16x18 3/8" 11/16"
GC17-6x8 3/8" 3/4x16 1/2" 7/8"
GC17-8x8 1/2" 3/4x16 1/2" 7/8"
GC17-8x10 1/2" 7/8x14 5/8" 1"

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
