GC10-16x16 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x G-1-11 Thread Size Female Swivel | 1" BSPP | Straight | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp Series - BSPP - British Standard Parallel 60° Cone - Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $36.19 |
| 40–79 | $32.73 |
| 80+ | $28.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

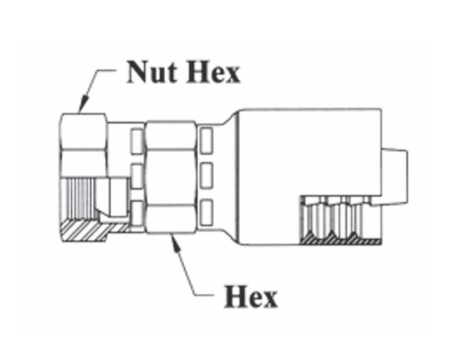

| Part Number | Hose ID | BSPP Size | Thread Size | Hex Size | Nut Hex | Cross Reference Part Numbers | |
|---|---|---|---|---|---|---|---|
| Gates Mega | Parker 43 | ||||||
| GC10-4x4* | 1/4" | 1/4" | G-1/4-19 | 9/16" | 3/4" | 4G-4FBSPORX | 19243-4-4 |
| GC10-4x6* | 1/4" | 3/8" | G-3/8-19 | 3/4" | 7/8" | 4G-6FBSPORX | - |
| GC10-6x6* | 3/8" | 3/8" | G-3/8-19 | 3/4" | 7/8" | 6G-6FBSPORX | 19243-6-6 |
| GC10-6x8* | 3/8" | 1/2" | G-1/2-14 | 3/4" | 1" | 6G-8FBSPORX | 19243-8-6 |
| GC10-8x8* | 1/2" | 1/2" | G-1/2-14 | 7/8" | 1" | 8G-8FBSPORX | 19243-8-8 |
| GC10-10x10* | 5/8" | 5/8" | G-5/8-14 | 15/16" | 1-3/16" | 10G-10FBSPORX | 19243-10-10 |
| GC10-12x12* | 3/4" | 3/4" | G-3/4-14 | 1-1/8" | 1-1/4" | 12G-12FBSPORX | 19243-12-12 |
| GC10-16x16* | 1" | 1" | G-1-11 | 1-3/8" | 1-1/2" | 16G-16FBSPORX | 19243-16-16 |
| GC10-20x20* | 1-1/4" | 1-1/4" | G-1-1/4-11 | 1-11/16" | 1-7/8" | 20G-20FBSPORX | 19243-20-20 |
*Does not have groove for optional O-ring
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
