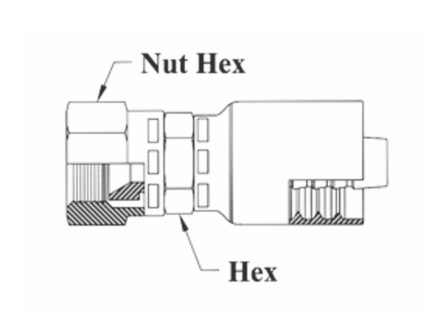

GC07-4x6 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 5/8x18 Thread Size SAE Female Swivel | 45° Elbow | Trivalent Zinc Plating

GC07-4x6 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 5/8x18 Thread Size SAE Female Swivel | 45° Elbow | Trivalent Zinc Plating

Minimum Order Quantity: 5 Units

Sale price$8.49

Couplamatic Systems Inc.
Grip Crimp Series - SAE 45° - Female Swivel
Buy More, Save More!
Quantity Price Each
20–39 $7.98
40–79 $7.22
80+ $6.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female SAE 45 Flare
  • 1/4in Hose Barb
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC07-4x6 1/4" 5/8x18 3/8" 11/16" 3/4" 4G-6FSX 10843-6-4
GC07-6x6 3/8" 5/8x18 3/8" 3/4" 13/16" 6G-6FSX 10843-6-6
GC07-12x12 3/4" 1-1/16x14 3/4" 1-1/8" 1-1/4" 12G-12FSX 10843-12-12

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
