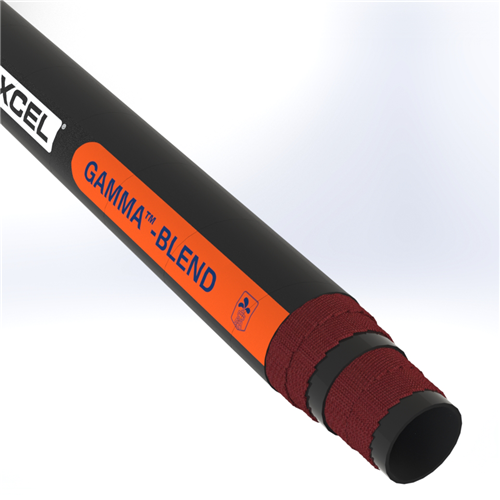

GBF40S1-4.0-200N by Texcel | GAMMA™-BLEND Series | Blender/Fracturing Hose | 4" Hose ID | 400 PSI | Black
GAMMA™ by Texcel
BLEND Series | 400psi Blender/Fracturing Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $53.48 |
| 40–79 | $48.36 |
| 80+ | $42.67 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A rugged hose designed for blender/fracturing operations in oilfield and gas exploration applications. The abrasion-resistant cover is constructed to withstand extended exposure to harsh, abrasive conditions typically seen in oilfield fracturing operations. Designed for the transfer of 98% water and sand mixtures, oil slurries and crude oil. | Tube: | Black, fuel and oil-resistant, NBR compound |
| Cover: | Black, abrasion-resistant, SBR/Nitrile blend compound* | Reinforcement: | High tensile strength tire cord plies |
| Safety Factor: | 4:1 | Temperature: | -30°F to +180°F |
| Branding: | TEXCEL® GAMMA™-BLEND - BLENDER / FRACTURING DISCHARGE HOSE 400 PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Lbs./ft |
|---|---|---|---|---|
| GBF40S1-4.0-200N | 4" | 4-49/64" | 400 psi | 3.02 lbs |
*Additional UHMW heavy-duty cover application available for special order
