GB8 by Dixon Valve | Boss® Ground Joint | Female Spud | 3/4" Female NPT x Wing Nut Thread | Plated Steel

GB8 by Dixon Valve | Boss® Ground Joint | Female Spud | 3/4" Female NPT x Wing Nut Thread | Plated Steel

Sale price$19.79
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:

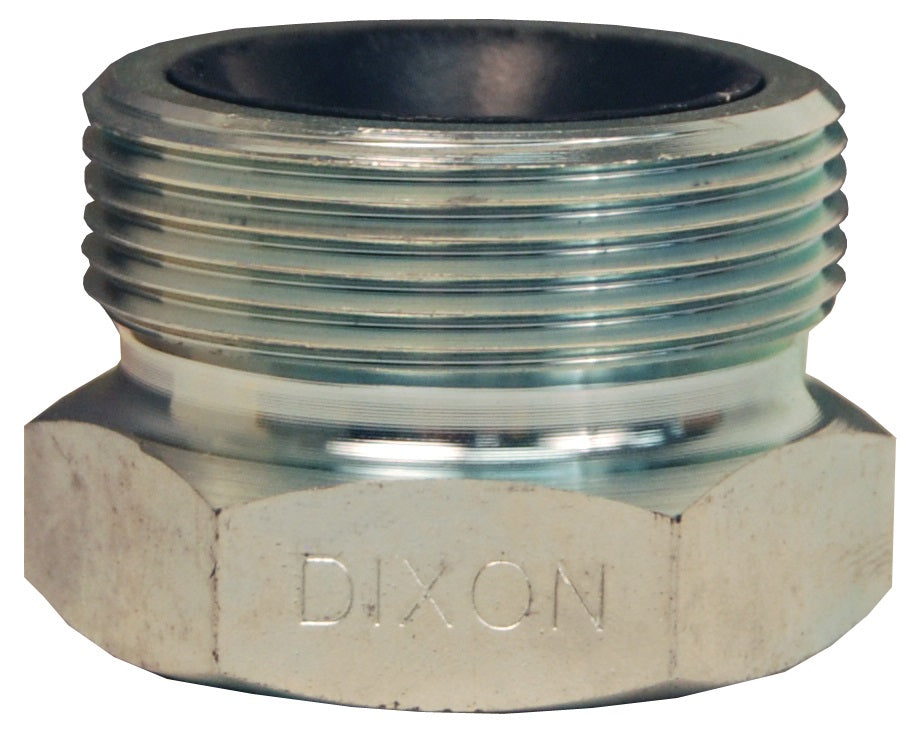

  • The spud part of the coupling serves as one half of the Boss Ground Joint connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. When connected they achieve both a mechanical, and a pressure seal.
  • Easy to seal.
Use:
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet.
  • Use with Boss Ground Joint fittings.
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
    • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!
  • Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Plated Steel
and / or
Iron
Part Number		 316 Stainless Steel
Part Number		 Brass
Part Number		 Size
GBC* - - 1/4"
GCC* - - 3/8"
GB3 - - 1/2"
GB8 RGB8 BGB8 3/4"
GB13 RGB13 BGB13 1"
GB18 RGB18 - 1-1/4"
GB23 RGB23 - 1-1/2"
GB28 RGB28 - 2"
GB33 - - 2-1/2"
GB38 - - 3"
GB48 - - 4"
GB68* - - 6"

* 1/4", 3/8", and 6" available only with copper seat spuds; all other sizes have polymer seats.

Additional Product Data:

Brand:
  • Boss
Shape:

Straight

Ends Configuration:
  • 3/4in GJ Wing Nut Thread
  • 3/4in Female NPT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
