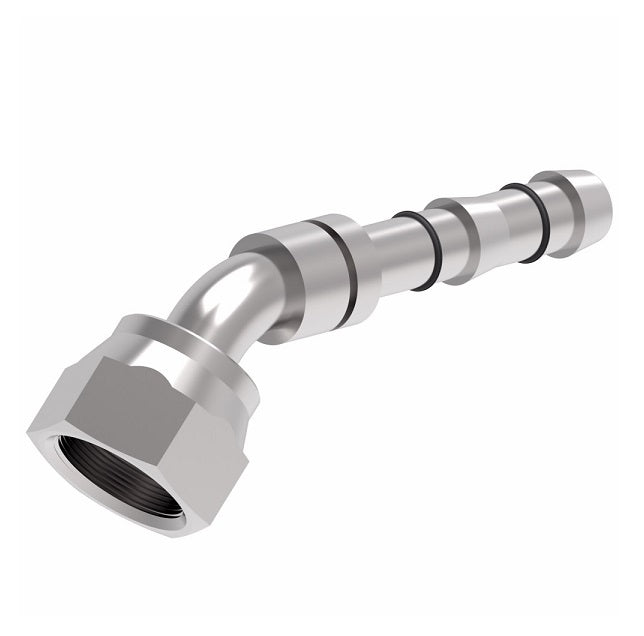

GA23912-8-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female ORS Swivel - 45° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.69 |
| 40–79 | $21.42 |
| 80+ | $18.90 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
| FJ3161-05-0404S | 9/16-18 | -04 | 1.86" | 1.01" | 0.41" | 0.69" | FF14175 |
| FJ3161-01-0606S | 11/16-16 | -06 | 2.65" | 1.12" | 0.44" | 0.81" | FF14171 |
| FJ3161-02-0808S | 13/16-16 | -08 | 3.02" | 1.47" | 0.59" | 0.94" | FF14172 |
| FJ3161-03-1010S | 1-14 | -10 | 3.22" | 1.67" | 0.70" | 1.13" | FF14173 |
| FJ3161-04-1008S | 1-14 | -08 | 3.32" | 1.78" | 0.70" | 1.13" | FF14172 |
| GA23912-10-8* | 1-14 | -08 | 3.50" | 1.96" | 0.68" | 30mm | FF14172 |
| GA23912-10-10* | 1-14 | -10 | 3.77" | 2.22" | 0.68" | 30mm | FF14173 |
| GA23912-12-12* | 1-3/16-12 | -12 | 4.23" | 2.65" | 0.83" | 36mm | FF14174 |
| GA23912-8-8* | 13/16-16 | -08 | 3.43" | 1.89" | 0.59" | 30mm | FF14172 |
* GA Part numbers have a metric hex
