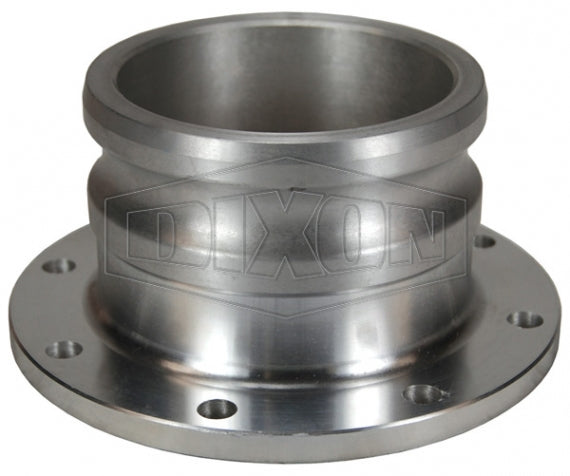

G400-ALT-AL by Dixon Valve | Global Cam & Groove Adapter | 4" Adapter x TTMA Flange | 356T6 Aluminum

G400-ALT-AL by Dixon Valve | Global Cam & Groove Adapter | 4" Adapter x TTMA Flange | 356T6 Aluminum

Sale price$76.48
Buy more, save moreDiscounts applied in cart/checkout.
Construction:
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
356T6 Aluminum
Part Number		 Size Max. Operating Pressure
G400-ALT-AL 4" 100 PSI

Additional Product Data:

MAWP:

100

Shape:

Straight

Ends Configuration:
  • 4in Male Cam & Groove
  • 4in TTMA Flange

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
