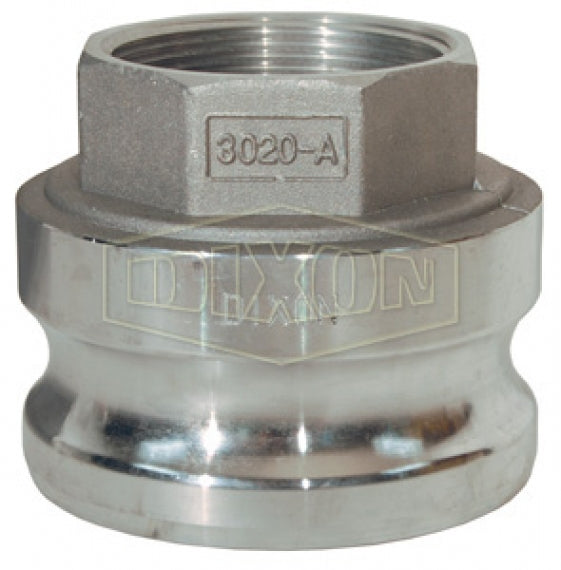

G3020-A-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Adapter | Type A | 3" Adapter x 2" Female NPT | A380 Permanent Mold Aluminum

G3020-A-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Adapter | Type A | 3" Adapter x 2" Female NPT | A380 Permanent Mold Aluminum

Sale price$52.77

Dixon Valve
Global Cam & Groove | Type A | Reducer (Jump Size) Adapter | Adapter x Female NPT

Designed for use with liquids.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $49.60
40–79 $44.85
80+ $39.58
Discounts applied in cart/checkout.

Product Data:

MAWP:

125

Shape:

Straight

Ends Configuration:
  • 3in Male Cam & Groove
  • 2in Female NPT
Construction:
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 Adapter x Female NPT Size Max. Operating Pressure
G3020-A-AL 3" x 2" 125 PSI
G4030-A-AL 4" x 3" 100 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
