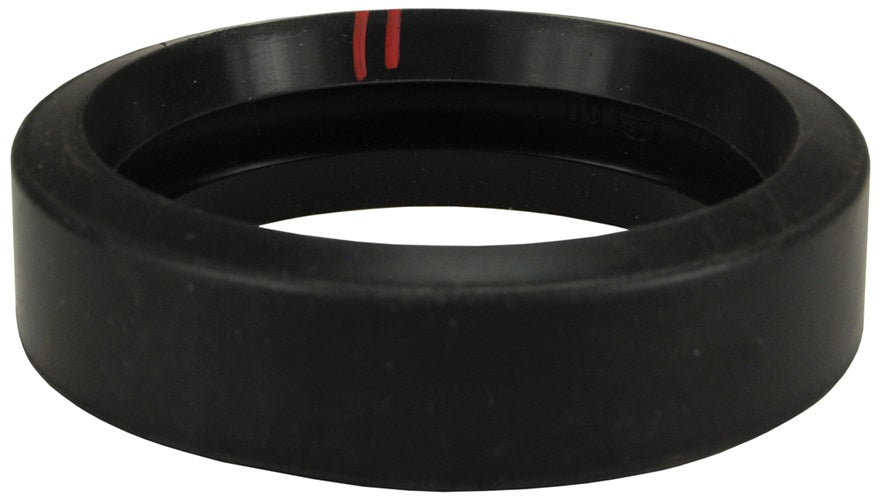

G300VB by Dixon Valve | Replacement Gasket for Grooved Bolted Clamp | 3" Size | FKM-B

G300VB by Dixon Valve | Replacement Gasket for Grooved Bolted Clamp | 3" Size | FKM-B

Sale price$77.90

Dixon Valve
Replacement Gasket for Grooved Bolted Clamps
Buy More, Save More!
Quantity Price Each
5–19 $73.23
20–59 $66.22
60+ $58.43
Discounts applied in cart/checkout.

Product Data:

Seal Material(s):
  • Viton/FKM
Specifications:
  • Temperature ratings for FKM-B is 20°F to 300°F (-7°C to 149°C)
  • Temperature ratings for Baylast™ is -20°F to 180°F (-29°C to 82°C)
  • 2" pressure rating: 400 PSI
  • 3" pressure rating: 170 PSI
  • 4" pressure rating: 120 PSI
Approvals:
  • FKM-B rated for 100% biodiesel and Ethanol.
  • Nitrile rubber rated for petroleum service, Ethanol to E100, and biodiesel to B20.
  • Baylast™ rated for petroleum service, Ethanol to E100, and biodiesel to B100.
FKM-B
Part Number		 Nitrile Rubber
Part Number		 Baylast
Part Number		 White Nitrile Rubber
Part Number		 Size
G200VB - G200BL - 2"
G300VB G300T G300BL - 3"
G400VB G400T G400BL G400N 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
