G100X100 Tigerflex by Kuriyama | G Series | Heavy Duty Tiger Suction Hose | 1" ID | PVC | 100ft Length

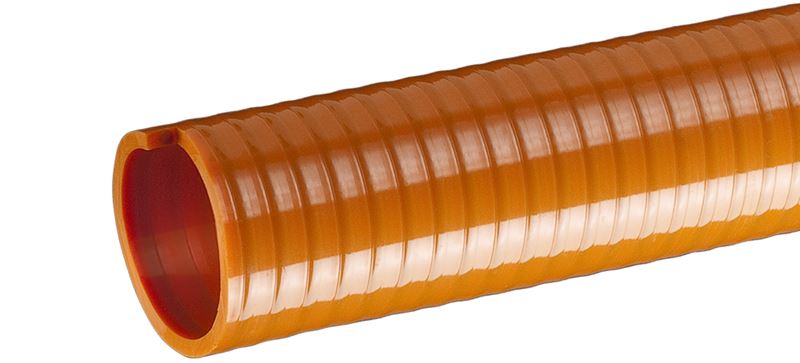

Kuriyama Tigerflex G™ Series Heavy Duty PVC Suction Hose
Package Quantity: 100 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
100
Tubing Construction:
Specifications and Approvals:
SPECIFICATIONS
| Application: | Irrigation lines, Rental and construction dewatering, Pumps, Trash, Water suction - heavy duty, | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| G100X100 | 1" | 25.4mm | 1.26" | 32.0mm | 100 PSI | 65 PSI | Full | 28 in .Hg | 3" | 100ft | 0.27 lbs |
| G200X100 | 2" | 50.8mm | 2.38" | 60.4mm | 100 PSI | 65 PSI | Full | 26 in. Hg | 7" | 100ft | 0.71 lbs |
| G250X100 | 2-1/2" | 63.5mm | 2.89" | 73.4mm | 70 PSI | 48 PSI | Full | 26 in. Hg | 8" | 100ft | 0.96 lbs |
| G300X100 | 3" | 76.2mm | 3.44" | 87.4mm | 70 PSI | 45 PSI | Full | 26 in. Hg | 10" | 100ft | 1.25 lbs |
| G400X100 | 4" | 101.6mm | 4.57" | 116.1mm | 60 PSI | 40 PSI | Full | 26 in. Hg | 15" | 100ft | 1.95 lbs |
| G600X100 | 6" | 152.4mm | 6.77" | 172.0mm | 40 PSI | 25 PSI | 28 in. Hg | 22 in. Hg | 25" | 100ft | 3.76 lbs |
