15-24 by Flexco | #10115 | 24" Wide Alligator Belt Lacing | Steel

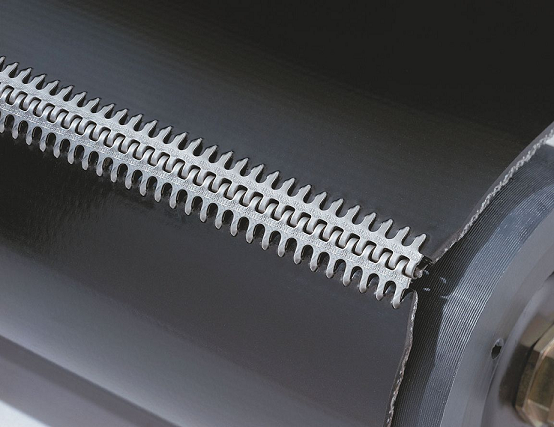

For easy, economical installation and an exceptionally smooth joint, choose the Alligator Conveyor Belt Lacing System. Alligator Lacing is available in continuous lengths to fit any belt width and the one piece design provides uniform tension across the full belt width. The one piece fastener strip also ensures that there are no loose pieces to work themselves out of the belt and into the conveyed product.

Alligator Belt Lacing installation requires no special tools, only a hammer. The lacing is secured with teeth that embed lengthwise on the belt, providing a strong, vise-like hold. Clips hold gauge rod and lacing firmly and squarely against the belt and ensures a strong, straight splice. The straight splice also helps ease hinge pin insertion.

Each Carton Contains:
4 sets of steel Alligator belt lacing 4 steel corrugated hinge pins 1 installation gauge pin with clips
Applications:
Manufacturing Assembly Lines Food, Package, Parts Handling Checkout Counters Agricultural Equipment
Features:
Interlaced fastener strips that create an exceptionally smooth joint. Available in continuous lengths to fit any belt width. Ideal for transmission belts and other less demanding, low volume applications.
Installation:
Requires no special tools - only a hammer
Notes:
The dash size after the Lacing Size is the width of the lacing. Steel is the standard fastener material. It is suitable for most applications and is plated for rust and corrosion resistance. 300 Series stainless steel is non-rusting and displays extra resistance to abrasion, acids, chemicals, and magnetic attraction. It is excellent in applications with high sanitation requirements.

Part Number	Length
15-12	12"
15-14	14"
15-16	16"
15-18	18"
15-20	20"
15-22	22"
15-24	24"
15-26	26"
15-28	28"
15-30	30"
15-32	32"
15-36	36"
15-42	42"
15-48	48"
15-60	60"

Belt and Hose Alligator Selection Chart, use this chart to ensure you are purchasing the correct lace from us.
Lacing Size	PIW Rating	Belt Thickness Range	Minimum Pulley Diameter	Hinge Pin Diameter
00	25	up to 1/16"	1"	3/64"
1	45	1/16" - 3/32"	1-1/2"	1/16"
7	50	3/32" - 9/64"	2"	1/16"
15	65	1/8" - 5/32"	2-1/2"	3/32"
20	95	5/32" - 3/16"	3"	7/64"
25	100	3/16" - 7/32"	4"	1/8"
27	100	7/32" - 9/32"	5"	1/8"
35	150	9/32" - 5/16"	7"	9/64"
45	165	5/16" - 3/8"	9"	3/16"
55	175	3/8" - 7/16"	12"	13/64"
65	200	7/16" - 1/2"	14"	13/64"
