4-XLT-25 by Flexaust | #8401040025 | XLT | Air and Fume Duct Hose | 4 inch | 25ft

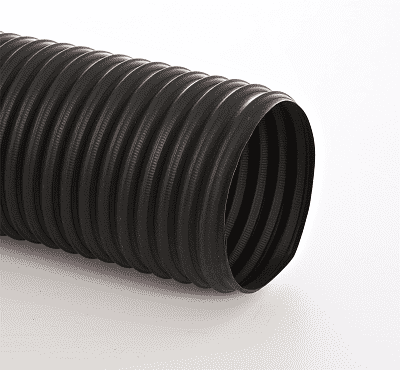

Flexaust Flexadux XLT Air and Fume Duct Hose Very light weight black thermoplastic rubber hose reinforced with a spring steel wire helix.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $155.05 |
| 20–59 | $140.21 |
| 60+ | $123.71 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
3
Tubing Construction:
SPECIFICATIONS
| Applications: | A/C Ventilation, Defroster/Heater, Electronic Panel Cooling, Pet Grooming Equipment, Stereo Speakers, Textile Fiber Collection | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Very light weight black thermoplastic rubber |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | 60 deg. F to 275 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| XLT 2in | 2" | .012" | 2" | 6:1 | 29 | 7 | 3.5 lbs |
| XLT 3in | 3" | .012" | 2.96" | 6:1 | 14 | 4.93 | 5.25 lbs |
| XLT 4in | 4" | .012" | 3.5" | 6:1 | 6 | 3.7 | 7 lbs |
| XLT 5in | 5" | .012" | 3.96" | 6:1 | 3 | 3 | 8.75 lbs |
| XLT 6in | 6" | .012" | 4.42" | 6:1 | 1.8 | 2.5 | 10.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
