12-White-25 by Flexaust | #2201200025 | Air, Fume, Dust, and Material Handling Duct Hose | White | 12 inch | 25ft
Flexaust

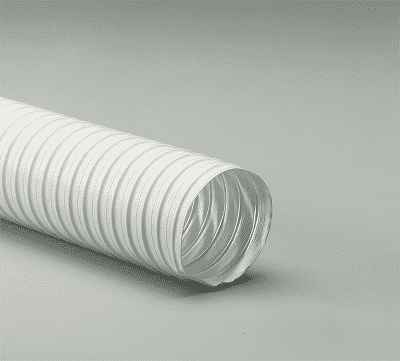

White Air, Fume, Dust, and Material Handling Duct Hose
Double-ply white acrylic coated polyester fabric hose reinforced with a spring steel wire helix.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $974.94 |
| 8–14 | $933.45 |
| 15+ | $829.74 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
7
Tubing Construction:
SPECIFICATIONS
| Applications: | Food Grade, HEPA, Pharmaceutical | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Double-ply white acrylic coated polyester fabric |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -20 deg. F to 325 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels |
Inside Diameter |
Wall Thickness (In) |
Centerline Bend Radius (In) |
Compression Ratio |
Negative Pressure (In/Hg) |
Working Pressure (PSI) |
Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| White 1.5in | 1.5" | N/A | 1.32" | 3:1 | 29 | 30 | 5 lbs |
| White 1.75in | 1.75" | N/A | 1.5" | 3:1 | 29 | 30 | 6.25 lbs |
| White 2in | 2" | N/A | 1.7" | 3:1 | 29 | 30 | 7.5 lbs |
| White 2.5in | 2.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| White 3in | 3" | N/A | 2.5" | 4:1 | 29 | 29 | 10 lbs |
| White 4in | 4" | N/A | 3.2" | 4:1 | 29 | 30 | 15 lbs |
| White 5in | 5" | N/A | 4" | 4:1 | 16 | 29 | 17.5 lbs |
| White 6in | 6" | N/A | 4.5" | 4:1 | 18 | 12 | 25 lbs |
| White 7in | 7" | N/A | 5" | 4:1 | 14 | 10 | 27.5 lbs |
| White 8in | 8" | N/A | 5.6" | 4:1 | 12 | 8 | 30 lbs |
| White 10in | 10" | N/A | 7" | 5:1 | 5 | 8 | 37.5 lbs |
| White 12in | 12" | N/A | 8.3" | 5:1 | 3.8 | 7 | 45 lbs |
| White 14in | 14" | N/A | 10" | 7:1 | 3 | 5.3 | 62.5 lbs |
| White 16in | 16" | N/A | 11" | 7:1 | 2 | 4.5 | 70 lbs |
| White 18in | 18" | N/A | 13" | 7:1 | 1.8 | 3 | 77.5 lbs |
| White 20in | 20" | N/A | 14" | 7:1 | 1.3 | 2.6 | 87.5 lbs |
| White 22in | 22" | N/A | N/A | N/A | N/A | N/A | N/A |
| White 24in | 24" | N/A | N/A | N/A | N/A | N/A | N/A |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
