1.5-ULT-50 by Flexaust | #6115033050 | ULT Series | Material Handling Duct Hose | 1.5 inch | 50ft

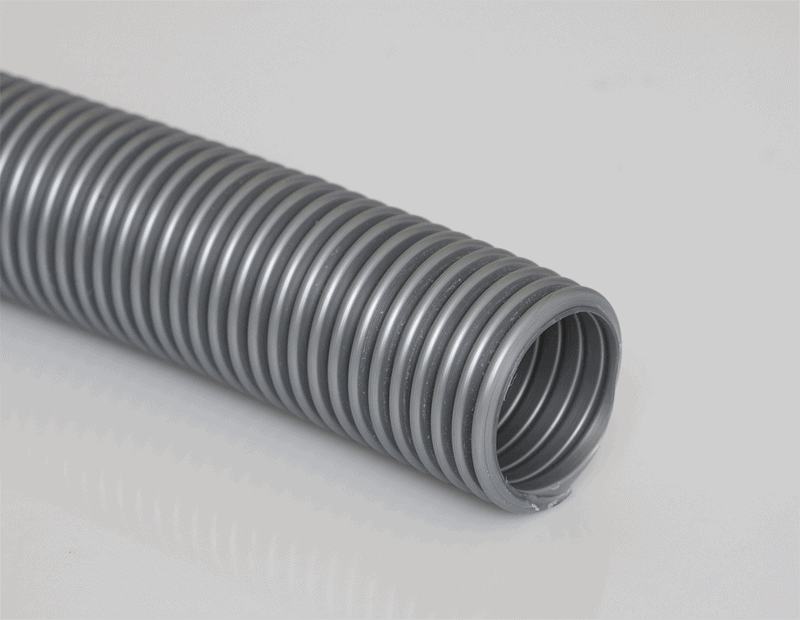

Flexaust Genesis ULT Material Handling Duct Hose Light weight premium grade platinum polyethylene copolymer hose reinforced with an integral polyethylene helix
Package Quantity: 50 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
10
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Applications: | Residential Vacuum Cleaners | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Light weight premium grade platinum polyethylene copolymer |
| Reinforcement: | Integral polyethylene helix | Cover: | N/A |
| Temperature Range: | -40 deg. F to 140 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| ULT 1in | ULT 1in | 1" | N/A | 1.75" | N/A | 20 | 13 | 2.25 lbs | 4.5 lbs |
| ULT 1.25in | ULT 1.25in | 1.25" | N/A | 2.25" | N/A | 25 | 12 | 4 lbs | 8 lbs |
| ULT 1.5in | ULT 1.5in | 1.5" | N/A | 2.5" | N/A | 18 | 10 | 4.75 lbs | 9.5 lbs |
| ULT 2in | ULT 2in | 2" | N/A | 3.75" | N/A | 9 | 7 | 6 lbs | 12 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
