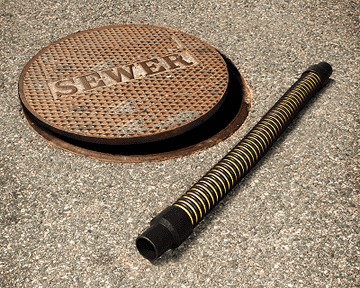

1.5-Tiger-Tail-Sewer-Guide-3 by Flexaust | #6815027003 | Tiger Tail Sewer Guide Hose Material Handling Duct Hose | 1.5 inch | 3ft
Flexaust

1.5-Tiger-Tail-Sewer-Guide-3 by Flexaust | #6815027003 | Tiger Tail Sewer Guide Hose Material Handling Duct Hose | 1.5 inch | 3ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Applications: Sewer & Waste SAE Rating: N/A
Other Ratings: N/A Tube: Rugged yellow polyethylene copolymer
Reinforcement: Black integral polyethylene helix Cover: N/A
Temperature Range: -40 deg. F to 140 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Improved polymer formula & 25% thicker to extend life.
  • Double helix design allows for superior flexibility & durability.
  • Designed to provide maximum abrasion protection for sewer jetting hose, expensive camera & utility inspection equipment.
  • Superior abrasion, better crush resistance & resists kinking.
  • All sizes handle a full vacuum.
  • Made with factory-installed leak proof polyweld cuffs
Part Number 3 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 3ft (Lbs/Ft)
Tiger Tail Sewer Guide 1.5in 1.5" N/A 3.75" N/A 29 26 1.05 lbs
Tiger Tail Sewer Guide 2in 2" N/A 5" N/A 29 17 1.95 lbs
Tiger Tail Sewer Guide 3in 3" N/A 8" N/A 29 12 3.6 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
