1.5-Tiger-Tail-25 by Flexaust | #6815027025 | Tiger Tail | Material Handling Duct Hose | 1.5 inch | 25ft

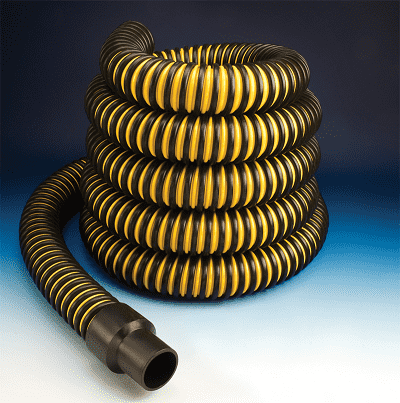

Flexaust Genesis Tiger Tail Material Handling Duct Hose Rugged yellow polyethylene copolymer hose reinforced with a black integral polyethylene helix
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $169.92 |
| 20–59 | $153.65 |
| 60+ | $135.58 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
26
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Applications: | Marine Sanitation, Pumper, Sewer & Waste, Suction | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Rugged yellow polyethylene copolymer |
| Reinforcement: | Black integral polyethylene helix | Cover: | N/A |
| Temperature Range: | -40 deg. F to 140 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| Tiger Tail 1.5in | Tiger Tail 1.5in | 1.5" | N/A | 3.75" | N/A | 29 | 26 | 8.75 lbs | 17.5 lbs |
| Tiger Tail 2in | Tiger Tail 2in | 2" | N/A | 5" | N/A | 29 | 17 | 16.25 lbs | 32.5 lbs |
| Tiger Tail 3in | Tiger Tail 3in | 3" | N/A | 8" | N/A | 29 | 12 | 30 lbs | 60 lbs |
| Tiger Tail 4in | Tiger Tail 4in | 4" | N/A | 9.5" | N/A | 29 | 7 | 40 lbs | 80 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
