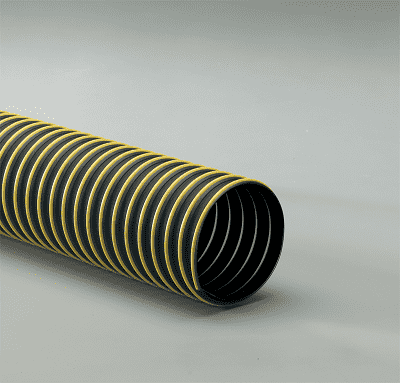

18-T-7W-25 by Flexaust | #8901180025 | T-7W Series | Dust and Material Handling Duct Hose | 18 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Car Wash, Furnace Duct Cleaning, Landfill Venting, Off-Road, Ozone, Paper Trim Conduit | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight black thermoplastic rubber |
| Reinforcement: | Spring steel wire helix and yellow external polypropylene wearstrip | Cover: | N/A |
| Temperature Range: | -60 deg. F to 275 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels |
Part Number 50 ft Reels |
Inside Diameter |
Wall Thickness (In) |
Centerline Bend Radius (In) |
Compression Ratio |
Negative Pressure (In/Hg) |
Working Pressure (PSI) |
Weight - 25ft (Lbs/Ft) |
Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| T-7W 2in | T-7W 2in | 2" | .030" | 2.42" | 2:1 | 29 | 14 | 6.25 lbs | 12.5 lbs |
| T-7W 2.25in | T-7W 2.25in | 2.25" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7W 2.5in | T-7W 2.5in | 2.5" | .030" | 2.75" | 2:1 | 29 | 11 | 8.25 lbs | 16.5 lbs |
| T-7W 3in | T-7W 3in | 3" | .030" | 3" | 2:1 | 29 | 9.5 | 10 lbs | 20 lbs |
| T-7W 3.5in | T-7W 3.5in | 3.5" | .030" | 4" | 2:1 | 29 | 9 | 11.75 lbs | 23.5 lbs |
| T-7W 4in | T-7W 4in | 4" | .030" | 5.5" | 2:1 | 29 | 9 | 16.75 lbs | 33.5 lbs |
| T-7W 5in | T-7W 5in | 5" | .030" | 5.5" | 2:1 | 17 | 8 | 21.25 lbs | 42.5 lbs |
| T-7W 6in | T-7W 6in | 6" | .030" | 5.5" | 3:1 | 8.3 | 5 | 20.5 lbs | 41 lbs |
| T-7W 7in | T-7W 7in | 7" | .030" | 7" | 3:1 | 5.25 | 4.5 | 25 lbs | 50 lbs |
| T-7W 8in | T-7W 8in | 8" | .030" | 8.25" | 3:1 | 3.46 | 4 | 30 lbs | 60 lbs |
| T-7W 10in | T-7W 10in | 10" | .030" | 10" | 3:1 | 9.2 | 4 | 55 lbs | 110 lbs |
| T-7W 12in | T-7W 12in | 12" | .030" | 12" | 3:1 | 5.36 | 3.5 | 67.5 lbs | 135 lbs |
| T-7W 14in | T-7W 14in | 14" | .030" | 9.5" | 3:1 | 3 | 3.4 | 75 lbs | 150 lbs |
| T-7W 16in | T-7W 16in | 16" | .030" | 11" | 3:1 | 2.3 | 2.6 | 87.5 lbs | 175 lbs |
| T-7W 18in | T-7W 18in | 18" | .030" | 12" | 3:1 | 1.6 | 2.3 | 97.5 lbs | 195 lbs |
| T-7W 20in | T-7W 20in | 20" | .030" | 13.5" | 3:1 | 1.2 | 2.1 | 107.5 lbs | 215 lbs |
| T-7W 22in | T-7W 22in | 22" | .030" | 15" | 3:1 | .9 | 1.9 | 110 lbs | 220 lbs |
| T-7W 24in | T-7W 24in | 24" | .030" | 16" | 3:1 | .7 | 1.75 | 120 lbs | 240 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
