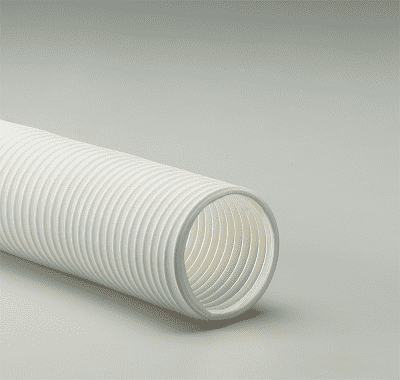

12-T-7-White-50 by Flexaust | #8881120050 | T-7 White Series | Dust, and Material Handling Duct Hose | 12 inch | 50ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Clean Rooms, Foundries, Pharmaceutical | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight white thermoplastic rubber |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -40 deg. F to 250 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| T-7 White 2in | T-7 White 2in | 2" | .025" | 1.75" | 2:1 | 29 | 14 | 6.25 lbs | 12.5 lbs |
| T-7 White 2.25in | T-7 White 2.25in | 2.5" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7 White 3in | T-7 White 3in | 3" | .030" | 2.5" | 2:1 | 29 | 10 | 10 lbs | 20 lbs |
| T-7 White 3.5in | T-7 White 3.5in | 3.5" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7 White 4in | T-7 White 4in | 4" | .030" | 3.5" | 2:1 | 15 | 7 | 15 lbs | 30 lbs |
| T-7 White 5in | T-7 White 5in | 5" | .030" | 4.5" | 2:1 | 13 | 6 | 20 lbs | 40 lbs |
| T-7 White 6in | T-7 White 6in | 6" | .030" | 5.5" | 2:1 | 8 | 5 | 21.25 lbs | 42.5 lbs |
| T-7 White 7in | T-7 White 7in | 7" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7 White 8in | T-7 White 8in | 8" | .030" | 7" | 2:1 | 6 | 4 | 25 lbs | 50 lbs |
| T-7 White 10in | T-7 White 10in | 10" | .030" | 8" | 2:1 | 8 | 3.5 | 50 lbs | 100 lbs |
| T-7 White 12in | T-7 White 12in | 12" | .030" | 10" | 2:1 | 5 | 3 | 67.5 lbs | 135 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
