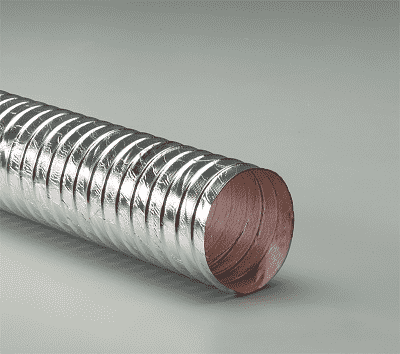

3-RaceFlex-12 by Flexaust | #2750300012 | RaceFlex | Air and Fume Duct Hose | 3 inch | 12ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Aerospace, Brake Ducting, Transmission Cooling | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Light weight silver laminate of fiberglass & vacuum metallized polyester film |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -65 deg. F to 625 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 12 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 12ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| RaceFlex 1.5in | 1.5" | N/A | 1.13" | 3:1 | 29 | 30 | 2.16 lbs |
| RaceFlex 2in | 2" | N/A | 1.58" | 3:1 | 29 | 30 | 3 lbs |
| RaceFlex 2.5in | 2.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| RaceFlex 3in | 3" | N/A | 2.375" | 4:1 | 29 | 30 | 3.828 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
