3.5-R-4-25 by Flexaust | #8171035025 | R-4 Series | Dust and Material Handling Duct Hose | 3.5 inch | 25ft
3.5-R-4-25 by Flexaust | #8171035025 | R-4 Series | Dust and Material Handling Duct Hose | 3.5 inch | 25ft
Flexaust

3.5-R-4-25 by Flexaust | #8171035025 | R-4 Series | Dust and Material Handling Duct Hose | 3.5 inch | 25ft

Sale price$238.45

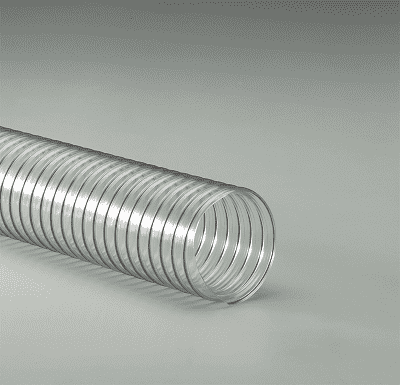

Flexaust Flexadux R-4 Dust and Material Handling Duct Hose Medium weight clear PVC hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Product Data:

Brand:
  • Flexadux PV
Series:
  • R-4
Color(s):
  • Clear/Semi-Clear

SPECIFICATIONS

Application: Ideal for dust and woodworking applications SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight clear PVC
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: 20 deg. F to 160 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good for positive pressure applications.
  • Great compressibility.
  • Good chemical & moisture resistance.
  • Clear is manufactured with FDA acceptable materials.
Part Number 10 ft Reels Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 10ft (Lbs/Ft) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
R-4 2in R-4 2in R-4 2in 2" .025" 2" 3:1 29 24 2.5 lbs 6.25 lbs 12.5 lbs
R-4 2.25in R-4 2.25in R-4 2.25in 2.25" .025" 2.25" 3:1 29 20 2.7 lbs 6.75 lbs 13.5 lbs
R-4 2.5in R-4 2.5in R-4 2.5in 2.5" .025" 2.5" 3:1 29 18 3.4 lbs 8.5 lbs 17 lbs
R-4 3in R-4 3in R-4 3in 3" .025" 3" 3:1 25 16 3.5 lbs 8.75 lbs 17.5 lbs
R-4 3.5in R-4 3.5in R-4 3.5in 3.5" .025" 3.5" 3:1 24 14 4.3 lbs 10.75 lbs 21.5 lbs
R-4 4in R-4 4in R-4 4in 4" .025" 3.7" 4:1 18 13 5.5 lbs 13.75 lbs 27.5 lbs
R-4 4.5in R-4 4.5in R-4 4.5in 4.5" N/A N/A N/A N/A N/A N/A N/A N/A
R-4 5in R-4 5in R-4 5in 5" .025" 5" 4:1 9 12 6.7 lbs 16.75 lbs 33.5 lbs
R-4 5.5in R-4 5.5in R-4 5.5in 5.5" N/A N/A N/A N/A N/A N/A N/A N/A
R-4 6in R-4 6in R-4 6in 6" .028" 6" 3:1 8 11 9 lbs 22.5 lbs 45 lbs
R-4 7in R-4 7in R-4 7in 7" .028" 7" 3:1 5 9 9.8 lbs 24.5 lbs 49 lbs
R-4 8in R-4 8in R-4 8in 8" .028" 8" 3:1 3.5 8 11.3 lbs 28.25 lbs 56.5 lbs
R-4 9in R-4 9in R-4 9in 9" .028" 9" 3:1 2.5 7 13.6 lbs 34 lbs 68 lbs
R-4 10in R-4 10in R-4 10in 10" .028" 9" 4:1 1.1 7 16.5 lbs 41.25 lbs 82.5 lbs
R-4 12in R-4 12in R-4 12in 12" .028" 10" 4:1 1 6 19.7 lbs 49.25 lbs 98.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
