1.25-MG-V-50 by Flexaust | #MGV-R125050 | G MG-V Series | Air, Fume, Dust, and Material Handling Duct Hose | 1.25 inch | 50ft

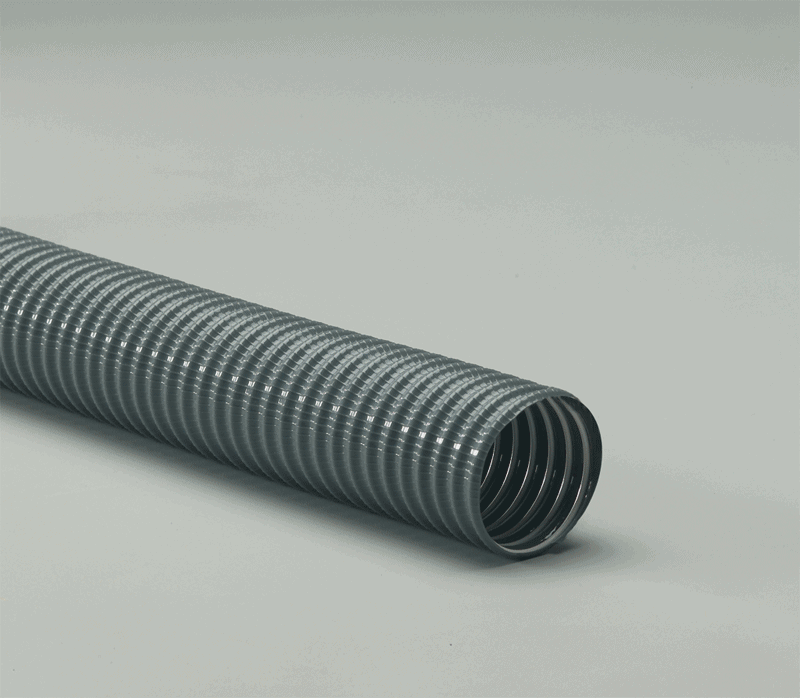

Flexaust Dayflex MG-V (MGV) Air, Fume, Dust, and Material Handling Duct Hose Gray PVC hose reinforced with a vinyl coated spring steel wire helix
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $146.58 |
| 20–59 | $132.55 |
| 60+ | $116.96 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
15
Tubing Construction:
SPECIFICATIONS
| Applications: | Cab Ventilation, Circuit Board Cooling, Flight Simulators, Pet Grooming Equipment, Printing, Race Car Helmet Ventilation, Residential Vacuum Cleaners, Stretch Hose | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Gray PVC |
| Reinforcement: | Vinyl coated spring steel wire helix | Cover: | N/A |
| Temperature Range: | -10 deg. F to 160 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| MG-V .75in | .75" | N/A | .875" | 1.6:1 | 29 | 15 | 5.5 lbs |
| MG-V 1in | 1" | N/A | 1" | 1.6:1 | 29 | 15 | 7.5 lbs |
| MG-V 1.25in | 1.25" | N/A | 1.25" | 1.6:1 | 29 | 15 | 9 lbs |
| MG-V 1.5in | 1.5" | N/A | 1.625" | 1.6:1 | 29 | 15 | 11.5 lbs |
| MG-V 1.75in | 1.75" | N/A | N/A | N/A | N/A | N/A | N/A |
| MG-V 2in | 2" | N/A | 2.3" | 1.6:1 | 29 | 15 | 17.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
