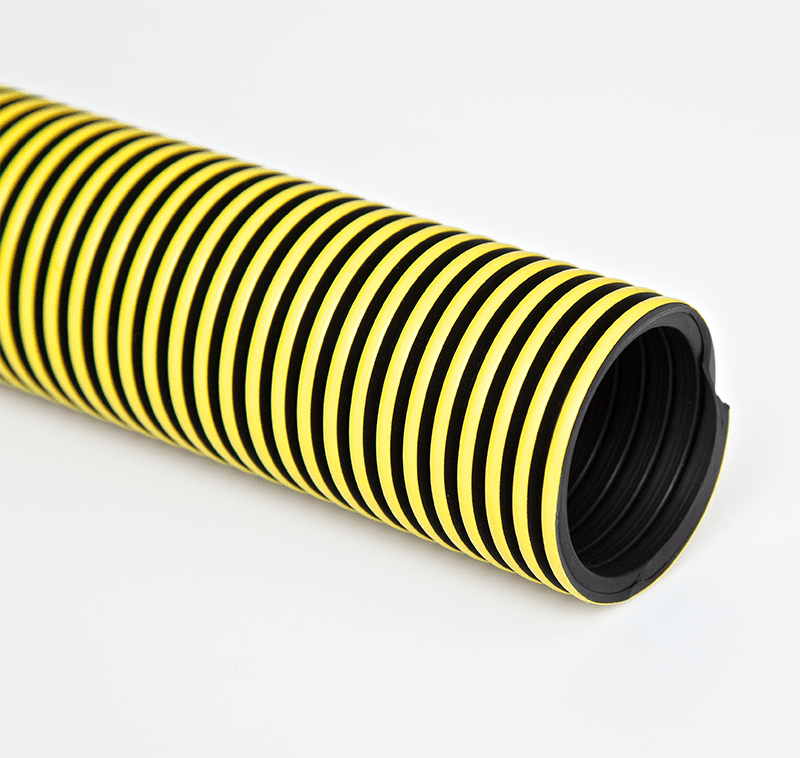

1-Genesis-StatPath-Plus-25 by Flexaust | #5991000225 | Genesis StatPath Plus | Material Handling Duct Hose | 1 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Auto Tellers, Bus Ventilation, Industrial Vacuum Cleaners, Paper Trim Conduit, Printing, Sprayers, Static Control | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Light weight black polyethylene conductive copolymer with a yellow skimcoat |
| Reinforcement: | Integral polyethylene helix | Cover: | N/A |
| Temperature Range: | -40 deg. F to 140 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| StatPath Plus 1in | StatPath Plus 1in | 1" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| StatPath Plus 1.25in | StatPath Plus 1.25in | 1.25" | N/A | 2.5" | N/A | 29 | 20 | 5.75 lbs | 11.5 lbs |
| StatPath Plus 1.5in | StatPath Plus 1.5in | 1.5" | N/A | 3.25" | N/A | 29 | 18 | 7 lbs | 14 lbs |
| StatPath Plus 2in | StatPath Plus 2in | 2" | N/A | 4.5" | N/A | 29 | 15 | 12 lbs | 24 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
