3-GPE-25 by Flexaust | #6630001025 | GPE Series | Air and Fume Duct Hose | 3 inch | 25ft

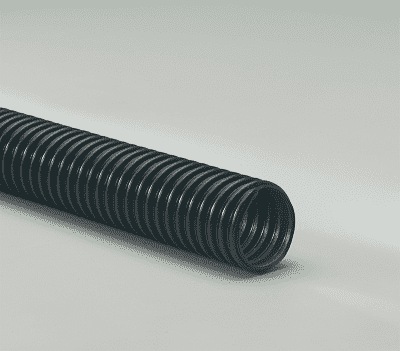

Flexaust Genesis GPE Air and Fume Duct Hose Light weight black polyethylene hose reinforced with an integral polyethylene helix
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $116.64 |
| 20–59 | $105.48 |
| 60+ | $93.07 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
11
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Applications: | A/C Ventilation, Bilge Pumping, Bus Ventilation, Cab Ventilation, Circuit Board Cooling, Electronic Panel Cooling, Limo A/C Duct, Pipe Organs, Stereo Speakers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Light weight black polyethylene |
| Reinforcement: | Integral polyethylene helix | Cover: | N/A |
| Temperature Range: | -40 deg. F to 140 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| GPE 2in | GPE 2in | 2" | N/A | 2.5" | N/A | 29 | 19 | 4.5 lbs | 9 lbs |
| GPE 2.5in | GPE 2.5in | 2.5" | N/A | 3" | N/A | 16 | 11 | 5.5 lbs | 11 lbs |
| GPE 3in | GPE 3in | 3" | N/A | 4" | N/A | 10 | 11 | 6.75 lbs | 13.5 lbs |
| GPE 4in | GPE 4in | 4" | N/A | 7" | N/A | 8 | 10 | 9 lbs | 18 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
