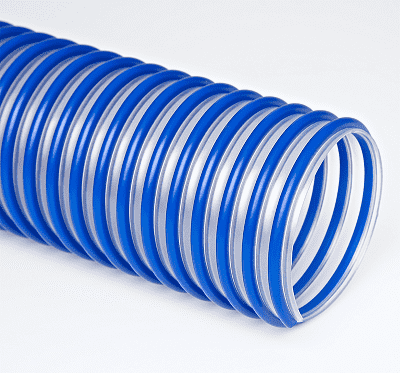

2-Flex-Tube-PU-60-HF-50 by Flexaust | #3547020050 | Flex-Tube PU 60 HF | Material Handling Duct Hose | 2 inch | 50ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Applications: | Grain Vac, Powder & Bulk, Sand Blasting | Temperature Range: | -40 deg. F to 200 deg. F |
|---|---|---|---|
| Reinforcement: | Blue rigid external ABS helix | Tube: | Clear thermoplastic polyether polyurethane |
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|
| Flex-Tube PU 60 HF 2in | Flex-Tube PU 60 HF 2in | 2" | .060 | 4.5" | 28 | 40 | 13.75 lbs | 27.5 lbs |
| Flex-Tube PU 60 HF 2.5in | Flex-Tube PU 60 HF 2.5in | 2.5" | .060 | 5" | 28 | 40 | 15.5 lbs | 31 lbs |
| Flex-Tube PU 60 HF 3in | Flex-Tube PU 60 HF 3in | 3" | .060 | 5.8" | 28 | 40 | 19 lbs | 38 lbs |
| Flex-Tube PU 60 HF 4in | Flex-Tube PU 60 HF 4in | 4" | .060 | 6" | 20 | 30 | 21.75 lbs | 43.5 lbs |
| Flex-Tube PU 60 HF 5in | Flex-Tube PU 60 HF 5in | 5" | .060 | 6.3" | 14 | 24 | 25.5 lbs | 51 lbs |
| Flex-Tube PU 60 HF 6in | Flex-Tube PU 60 HF 6in | 6" | .060 | 6.5" | 12 | 24 | 30.25 lbs | 60.5 lbs |
| Flex-Tube PU 60 HF 7in | Flex-Tube PU 60 HF 7in | 7" | .060 | 7.5" | 10 | 21 | 35.25 lbs | 70.5 lbs |
| Flex-Tube PU 60 HF 8in | Flex-Tube PU 60 HF 8in | 8" | .060 | 8.5" | 8 | 22 | 45.75 lbs | 91.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
