9-CWS-25 by Flexaust | #1400900025 | CWS Series | Air and Fume Duct Hose | 9 inch | 25ft
Flexaust

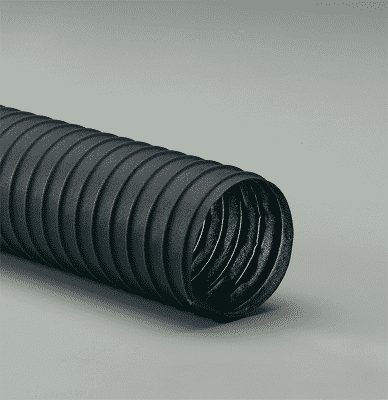

CWS Air and Fume Duct Hose
Single-ply black neoprene coated polyester fabric hose reinforced with a spring steel wire helix.
Package Quantity: 25 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
SPECIFICATIONS
| Applications: | Auto Tellers, Confined Space Ventilation, Flame Retardant, Shipyards | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Single-ply black neoprene coated polyester fabric |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -65 deg. F to 250 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels |
Inside Diameter |
Wall Thickness (In) |
Centerline Bend Radius (In) |
Compression Ratio |
Negative Pressure (In/Hg) |
Working Pressure (PSI) |
Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| CWS 1.5in | 1.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 1.75in | 1.75" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 2in | 2" | N/A | 1.8" | 4:1 | 29 | 30 | 6 lbs |
| CWS 2.25in | 2.25" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 2.5in | 2.5" | N/A | 2" | 4:1 | 29 | 30 | 6.25 lbs |
| CWS 3in | 3" | N/A | 2.5" | 4:1 | 29 | 30 | 9 lbs |
| CWS 3.5in | 3.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 4in | 4" | N/A | 3" | 4:1 | 29 | 18 | 11.75 lbs |
| CWS 4.5in | 4.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 5in | 5" | N/A | 3.5" | 4:1 | 17 | 15 | 14.75 lbs |
| CWS 5.5in | 5.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 6in | 6" | N/A | 4" | 4:1 | 16 | 7 | 16.75 lbs |
| CWS 7in | 7" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 8in | 8" | N/A | 5.5" | 5:1 | 10 | 5 | 22.5 lbs |
| CWS 9in | 9" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 10in | 10" | N/A | 6" | 6:1 | 4 | 4 | 27.5 lbs |
| CWS 12in | 12" | N/A | 7" | 6:1 | 3 | 3 | 35 lbs |
| CWS 14in | 14" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWS 16in | 16" | N/A | N/A | N/A | N/A | N/A | N/A |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
