14-CWGP-25 by Flexaust | #1031400025 | CWGP Series | Dust Duct Hose | 14 inch | 25ft
Flexaust CWGP Series | Dust Removal Ducting Hose

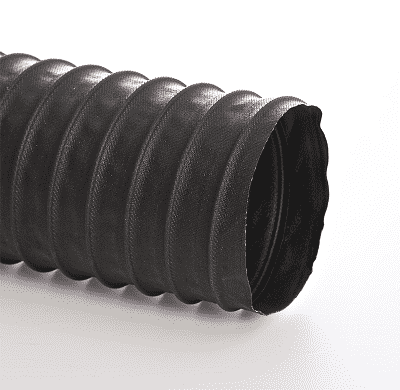

Made of double-ply black neoprene coated polyester fabric, reinforced with a spring steel wire helix.
Package Quantity: 25 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
3
Tubing Construction:
Specifications and Approvals:
| Applications: | Aluminum Refractory, Car Wash, Flame Retardant, Flight Simulators, Grinders, HEPA, Landfill Venting, Laser Engraving, Mining, Off-Road, Plastic Bag Machines, Sheet Metal, Shipyards, Wave Pool Blowers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Double-ply black neoprene coated polyester fabric |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -40 deg. F to 250 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|
| CWGP 1in | 1" | 1.1" | 3:1 | 29 | 30 | 3 lbs |
| CWGP 1.25in | 1.25" | 1.3" | 3:1 | 29 | 30 | 3.5 lbs |
| CWGP 1.5in | 1.5" | 1.7" | 3:1 | 29 | 30 | 4.25 lbs |
| CWGP 1.75in | 1.75" | 1.85" | 3:1 | 29 | 30 | 5 lbs |
| CWGP 2in | 2" | 2" | 4:1 | 29 | 30 | 6.25 lbs |
| CWGP 2.25in | 2.25" | N/A | N/A | N/A | N/A | N/A |
| CWGP 2.5in | 2.5" | 1.8" | 4:1 | 29 | 30 | 7.25 lbs |
| CWGP 3in | 3" | 2.4" | 4:1 | 29 | 30 | 8.5 lbs |
| CWGP 3.5in | 3.5" | 2.5" | 4:1 | 22 | 29 | 10 lbs |
| CWGP 4in | 4" | 3.1" | 5:1 | 29 | 30 | 14 lbs |
| CWGP 4.5in | 4.5" | 3.2" | 5:1 | 23 | 19 | 15.75 lbs |
| CWGP 5in | 5" | 3.5" | 5:1 | 17 | 17 | 18.75 lbs |
| CWGP 5.5in | 5.5" | 4" | 5:1 | 16 | 14 | 20.25 lbs |
| CWGP 6in | 6" | 4.5" | 5:1 | 21 | 11 | 23.75 lbs |
| CWGP 7in | 7" | 5" | 5:1 | 14 | 8 | 24.75 lbs |
| CWGP 8in | 8" | 6" | 6:1 | 12 | 6.5 | 27.5 lbs |
| CWGP 9in | 9" | 6.5" | 6:1 | 9 | 6 | 30 lbs |
| CWGP 10in | 10" | 7.5" | 8:1 | 7 | 5 | 32.5 lbs |
| CWGP 12in | 12" | 8" | 8:1 | 4 | 4.3 | 37.5 lbs |
| CWGP 14in | 14" | 10" | 8:1 | 3.7 | 3.6 | 55 lbs |
| CWGP 16in | 16" | 12" | 8:1 | 2.5 | 3.2 | 62.5 lbs |
| CWGP 18in | 18" | 13" | 8:1 | 1.8 | 3 | 70 lbs |
| CWGP 20in | 20" | 14" | 8:1 | 1.3 | 2.6 | 77.5 lbs |
| CWGP 22in | 22" | 15" | 8:1 | .81 | 2.4 | 87.5 lbs |
| CWGP 24in | 24" | 17" | 8:1 | .75 | 2.2 | 95 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
