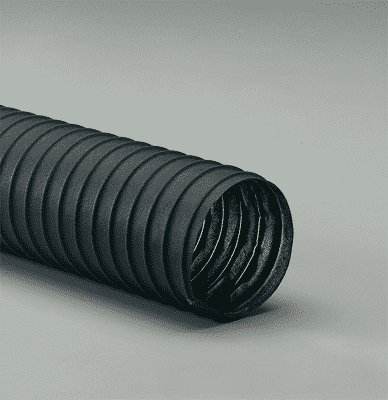

5-CW325-25 by Flexaust | #1600500025 | CW-325 Series | Air and Fume Duct Hose | 5 inch | 25ft
Flexaust Heat-Flex CW-325 (CW325) Air and Fume Duct Hose Single-ply black acrylic coated polyester fabric hose reinforced with a spring steel wire helix.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $421.20 |
| 15–29 | $380.88 |
| 30+ | $336.07 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
SPECIFICATIONS
| Applications: | Automotive, Chemical Fume Extraction, Diesel, Engine, Fume, and Garage Exhaust, Dry Cleaning, Drying Systems, Glass Drying, Landfill Venting, Ozone, Paper Mills, Plastics Industry, Pollution Control, Welding Fume Extraction | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Single-ply black acrylic coated polyester fabric |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -20 deg. F to 325 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| CW-325 2in | 2" | N/A | 1.6" | 4:1 | 29 | 30 | 6.25 lbs |
| CW-325 2.5in | 2.5" | N/A | 1.78" | 4:1 | 29 | 30 | 6.5 lbs |
| CW-325 3in | 3" | N/A | 2.3" | 5:1 | 29 | 30 | 7 lbs |
| CW-325 4in | 4" | N/A | 2.8" | 5:1 | 29 | 18 | 10.25 lbs |
| CW-325 5in | 5" | N/A | 3.5" | 5:1 | 16 | 14 | 15 lbs |
| CW-325 6in | 6" | N/A | 3.8" | 6:1 | 14 | 7 | 17.25 lbs |
| CW-325 8in | 8" | N/A | 5.2" | 6:1 | 7 | 5 | 23 lbs |
| CW-325 10in | 10" | N/A | 6.4" | 6:1 | 6 | 4 | 23 lbs |
| CW-325 12in | 12" | N/A | 8" | 6:1 | 5 | 3.7 | 50 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
