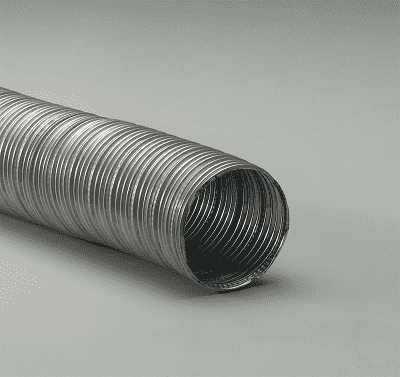

8-Bendway-S-5 by Flexaust | #4970800005 | Bendway S | Air and Fume Duct Hose | 8 inch | 5ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Chemical Fume Extraction, Circuit Board Cooling, Fireplace Inserts, HVAC, Oil Mist Extraction | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Single-ply helically corrugated stainless steel alloy |
| Reinforcement: | Four-ply finished seam that is folded flat and crimped for tightness and strength | Cover: | N/A |
| Temperature Range: | -400 deg. F to 800 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 5 ft Reels | Part Number 10 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 5ft (Lbs/Ft) | Weight - 10ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| Bendway S 2in | Bendway S 2in | 2" | .005" | 2.1" | N/A | N/A | N/A | 0.85 lbs | 1.7 lbs |
| Bendway S 3in | Bendway S 3in | 3" | .005" | 3.3" | N/A | N/A | N/A | 1.55 lbs | 3.1 lbs |
| Bendway S 4in | Bendway S 4in | 4" | .005" | 4.3" | N/A | N/A | N/A | 1.75 lbs | 3.5 lbs |
| Bendway S 5in | Bendway S 5in | 5" | .005" | 5.4" | N/A | N/A | N/A | 2.25 lbs | 4.5 lbs |
| Bendway S 6in | Bendway S 6in | 6" | .005" | 6.5" | N/A | N/A | N/A | 2.7 lbs | 5.4 lbs |
| Bendway S 7in | Bendway S 7in | 7" | .005" | 7.5" | N/A | N/A | N/A | 3.1 lbs | 6.2 lbs |
| Bendway S 8in | Bendway S 8in | 8" | .005" | 8.7" | N/A | N/A | N/A | 3.2 lbs | 6.4 lbs |
| Bendway S 9in | Bendway S 9in | 9" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Bendway S 10in | Bendway S 10in | 10" | .005" | 10.8" | N/A | N/A | N/A | 4 lbs | 8 lbs |
| Bendway S 12in | Bendway S 12in | 12" | .005" | 13" | N/A | N/A | N/A | 4.75 lbs | 9.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
