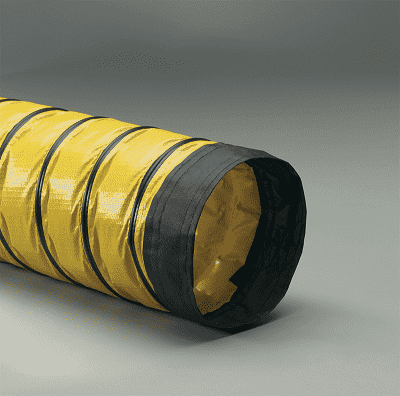

6-Arctic-Duct-3-25 by Flexaust | #4860600025 | Arctic Duct 3 | 6 Inches | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Springflex End Finishes
Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
 |
 |
 |
 |
 |
 |
| Sewn Cuff | Standard/Enclosed Belted Cuff |
Funnel Cuff | Belt Loop & Pull Tabs | Wire Rope/Nylon Ring | Sto-Sack |
SPECIFICATIONS
| Applications: | A/C Ventilation, Chiller, Function Tent HVAC, HVAC, Plastic Bag Machines, Thermo Insulated Heating/Cooling | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Two single-ply yellow PVC vinyl coated polyester fabric plies protecting an insulation barrier |
| Reinforcement: | Spring steel wire helix & black external PVC wearstrip | Cover: | N/A |
| Temperature Range: | -20 deg. F to 180 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| Arctic Duct 3 4in | 4" | N/A | N/A | N/A | N/A | N/A | N/A |
| Arctic Duct 3 5in | 5" | N/A | N/A | N/A | N/A | N/A | N/A |
| Arctic Duct 3 6in | 6" | N/A | 3.57" | 5:1 | 5.5 | 3.3 | 14.625 lbs |
| Arctic Duct 3 8in | 8" | N/A | 4.7" | 5:1 | 6 | 2.47 | 22.75 lbs |
| Arctic Duct 3 10in | 10" | N/A | 6" | 5:1 | 3 | 1.98 | 28 lbs |
| Arctic Duct 3 12in | 12" | N/A | 8" | 5:1 | 1.8 | 1.66 | 33.5 lbs |
| Arctic Duct 3 14in | 14" | N/A | 8.5" | 5:1 | 1.17 | 1.42 | 37.95 lbs |
| Arctic Duct 3 16in | 16" | N/A | 9.6" | 5:1 | .8 | 1.25 | 43.175 lbs |
| Arctic Duct 3 18in | 18" | N/A | 11" | 5:1 | .6 | 1.11 | 48.4 lbs |
| Arctic Duct 3 20in | 20" | N/A | 12" | 5:1 | .4 | .851 | 53.625 lbs |
| Arctic Duct 3 24in | 24" | N/A | 14" | 5:1 | .25 | .85 | 64.1 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
