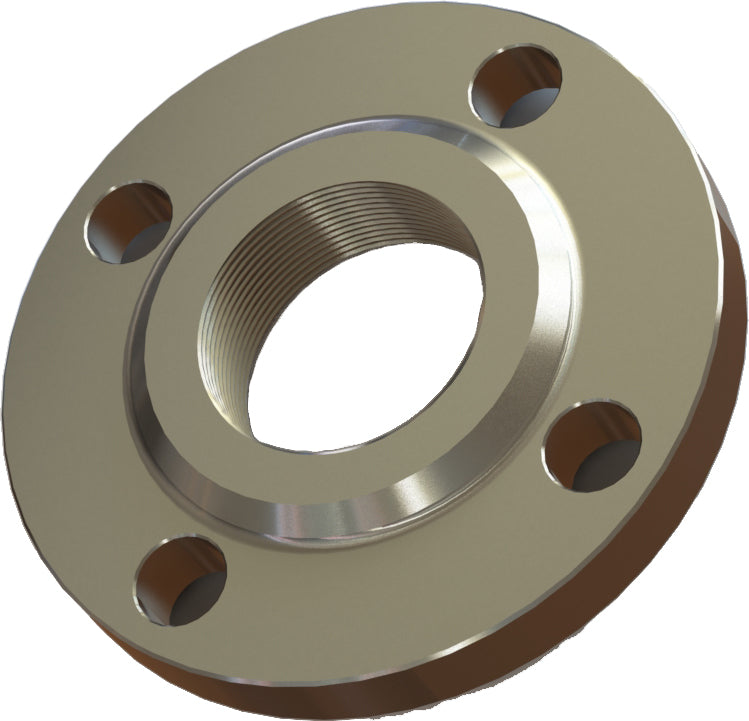

FT150SS-8 by Campbell Fittings | Threaded Flange | 2" 150# Flange x 2" Female NPT | 316 Stainless Steel

FT150SS-8 by Campbell Fittings | Threaded Flange | 2" 150# Flange x 2" Female NPT | 316 Stainless Steel

Sale price$201.24

by Campbell
Crimpnology Nipple:FT150SS Flange-Threaded (150lb.)
Buy More, Save More!
Quantity Price Each
5–19 $189.17
20–59 $171.05
60+ $150.93
Discounts applied in cart/checkout.

Product Data:

Series:
  • FT150SS Series
Ends Configuration:
  • 2in 150# Flange
  • 2in Female NPT
Material(s):
  • 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
FT150SS-4 1"
FT150SS-6 1-1/2"
FT150SS-8 2"
FT150SS-10 2-1/2"
FT150SS-12 3"
FT150SS-16 4"
FT150SS-24 6"
FT150SS-32 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
