FT1229-100-10 Aeroquip by Danfoss | Replacement Mandrel for External Skiving Tool | Silver | Chromate (Reusable Fittings)
FT1229 External Skiving Tools
Hose cover stripping tools designed to remove the rubber cover from wire reinforced hose prior to attaching reuseable fittings. The tools are designed for use either in a standard shop vise, lathe chuck, drill press, Eaton Aeroquip assembly machine or by hand.Silver Chromate Mandrel (for reusable fittings)

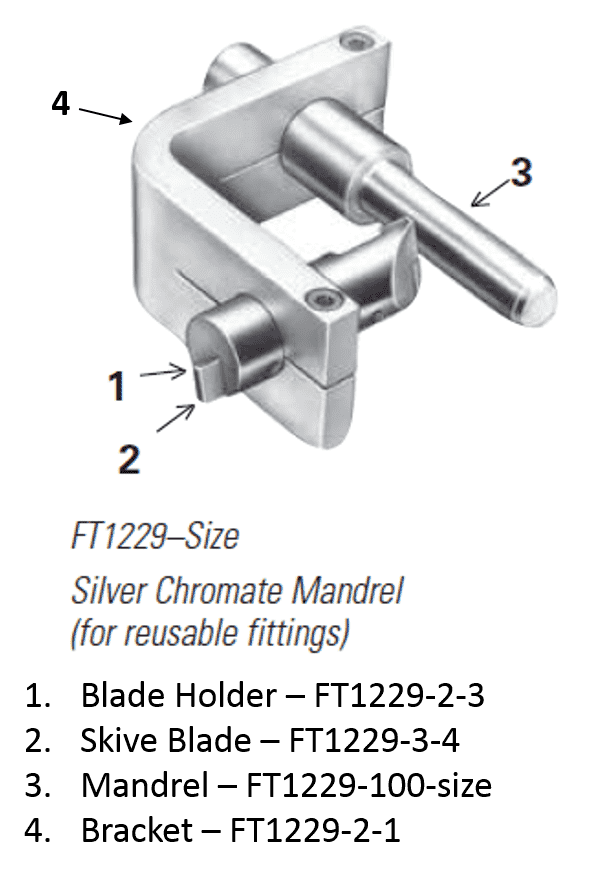

When selecting skive tools, refer to Eaton document A-EQCR-TM001-E for proper skive length of hose sizes. Tool Replacement parts:- FT1229-2-1 Bracket
- FT1229-2-3 Blade Holder
- FT1229-3-4 Skive Blade
- FT1229-3-6 Wrench - 1/8 in. Hex Key
For hand skiving operations:
FT1279 Auger attachment permits efficient skiving of rubber covered wire reinforced hose. Designed for use with FT1229, FT1230, and FT1231 skiving tools, the FT1279 auger attachment promotes quick completion of hand skiving operations.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $278.24 |
| 20–59 | $251.60 |
| 60+ | $222.00 |
Discounts applied in cart/checkout.
Product Data:
| Hose Size | Tool Part Number | ReplacementMandrelPart Number | SkiveLength |
|---|---|---|---|
| -4 | FT1229-4 | FT1229-100-4 | 0.91 |
| -6 | FT1229-6 | FT1229-100-6 | 1.151.231.30 |
| -8 | FT1229-8 | FT1229-100-8 | 1.25 |
| -10 | FT1229-10 | FT1229-100-10 | 1.25 |
| -12 | FT1229-12 | FT1229-100-12 | 1.40 |
| -16 | FT1229-16 | FT1229-100-16 | 1.65 |
| -20 | FT1229-20 | FT1229-100-20 | 2.09 |
| FT1229-20A3 | - | 2.60 | |
| -24 | FT1229-24 | FT1229-100-24 | 1.95 |
| -32 | FT1229-321 | FT1229-100-32 | 2.05 |
