FSX-04-06 by Kurt Hydraulics | Jump Size | Female SAE 45 Degree | Swivel | for 1/4" Hose ID

FSX-04-06 by Kurt Hydraulics | Jump Size | Female SAE 45 Degree | Swivel | for 1/4" Hose ID

Sale price$10.01
by Kurt Hydraulics
FSX - 45 deg. SAE Female Swivel
Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $9.41
40–79 $8.51
80+ $7.51
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1/4in Hose Barb
  • 3/8in Female SAE 45 Flare

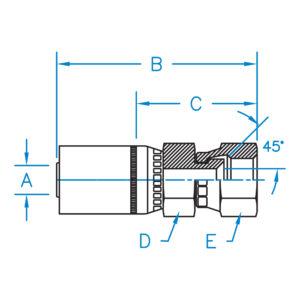

Part Number A B C D E Hose ID
(In)		 Thread
FSX-04-06 0.250 2.595 1.340 11/16 3/4 1/4" 5/8-18
FSX-05-06 .3125 N/A N/A N/A N/A 5/16" 5/8-18
FSX-06-06 0.375 2.856 1.356 11/16 3/4 3/8" 5/8-18
FSX-07-06-R5 N/A N/A N/A N/A N/A N/A N/A
FSX-12-12 0.750 3.251 1.658 1-1/8 1-1/4 3/4" 1-1/16-14


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
