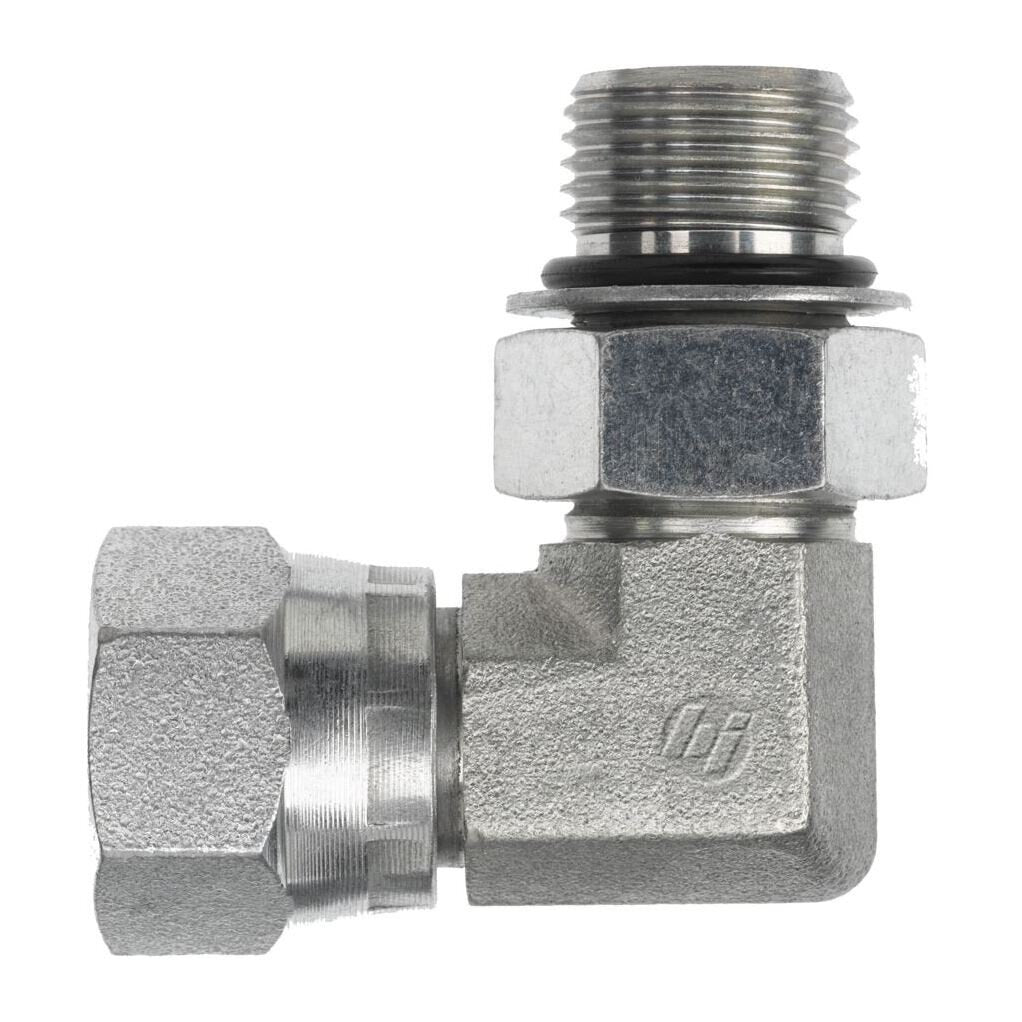

FS6809-06-06-NWO-FG by Brennan Inc. | -06 Female Face Seal Swivel x -06 Male Adjustable O-Ring Boss | 90° Elbow | Forged Steel
Brennan Inc.
O-Ring Face Seal Fittings: FS6809-NWO - Female Face Seal Swivel x Male Adjustable O-Ring Boss 90° Elbow
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | TubeO.D | AThread | BThread | AHole | BHole | AAALength | NLength | C1Hex | C2Hex | JJFlats |
| FS6809-04-04-NWO-FG | Forged Steel | 1/4" | 9/16-18" | 7/16-20" | 0.165" | 0.172" | 1.040" | 1.290" | 0.687" | 0.625" | 0.562" |
| FS6809-06-06-NWO-FG | Forged Steel | 3/8" | 11/16-16" | 9/16-18" | 0.264" | 0.264" | 1.150" | 1.450" | 0.812" | 0.750" | 0.750" |
| FS6809-08-08-NWO-FG | Forged Steel | 1/2" | 13/16-16" | 3/4-16" | 0.358" | 0.378" | 1.490" | 1.600" | 0.938" | 0.938" | 0.750" |
| FS6809-10-10-NWO-FG | Forged Steel | 5/8" | 1-14" | 7/8-14" | 0.453" | 0.484" | 1.620" | 1.970" | 1.125" | 1.062" | 1.062" |
| FS6809-12-12-NWO-FG | Forged Steel | 3/4" | 1-3/16-12" | 1-1/16-12" | 0.547" | 0.609" | 1.820" | 2.170" | 1.375" | 1.375" | 1.188" |
| FS6809-16-16-NWO-FG | Forged Steel | 1" | 1-7/16-12" | 1-5/16-12" | 0.783" | 0.811" | 2.100" | 2.350" | 1.625" | 1.625" | 1.438" |
| FS6809-20-20-NWO-FG | Forged Steel | 1-1/2" | 1-11/16-12" | 1-5/8-12" | 1.024" | 1.024" | 2.290" | 2.450" | 1.875" | 1.875" | 1.625" |
| FS6809-24-24-NWO-FG | Forged Steel | 1-1/2" | 2-12" | 1-7/8-12" | 1.260" | 1.260" | 2.410" | 2.590" | 2.250" | 2.125" | 1.875" |
