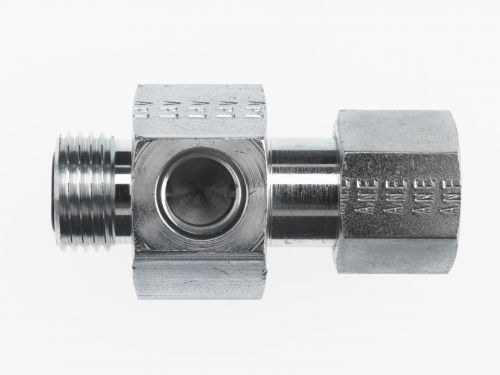

FS6564-20-20-04 by Brennan Inc. | -20 Male Face Seal x -20 Female Face Seal Swivel x -04 Female O-Ring Boss | Tee | Steel

FS6564-20-20-04 by Brennan Inc. | -20 Male Face Seal x -20 Female Face Seal Swivel x -04 Female O-Ring Boss | Tee | Steel

Sale price$61.48

Brennan Inc.
O-Ring Face Seal Fittings: FS6564 - Male Face Seal x Female Face Seal Swivel x Female O-Ring Boss Tee
Buy More, Save More!
Quantity Price Each
10–39 $57.79
40–79 $52.26
80+ $46.11
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1-1/4in Male O-Ring Face Seal
  • 1-1/4in Female O-Ring Face Seal
  • 1/4in Female O-Ring Boss
  • Some Ends Match
Material(s):
  • Steel
Part Number Material TubeO.D AThread BThread CSAE ORB ADrill BDrill lLength CHex HHex
FS6540-04-04-04 Steel 1/4" 9/16-18" 9/16-18" 7/16-20" 0.172" 0.172" 1.840" 0.687" 1.062"
FS6564-06-06-04 Steel 3/8" 11/16-16" 11/16-16" 7/16-20" 0.264" 0.264" 1.950" 0.812" 1.062"
FS6564-08-08-04 Steel 1/2" 13/16-16" 13/16-16" 7/16-20" 0.378" 0.358" 2.180" 0.938" 1.062"
FS6564-10-10-04 Steel 5/8" 1-14" 1-14" 7/16-20" 0.484" 0.484" 2.400" 1.125" 1.125"
FS6564-12-12-04 Steel 3/4" 1-3/16-12" 1-3/16-12" 7/16-20" 0.609" 0.547" 2.590" 1.375" 1.250"
FS6564-16-16-04 Steel 1" 1-7/16-12" 1-7/16-12" 7/16-20" 0.811" 0.811" 2.850" 1.625" 1.500"
FS6564-20-20-04 Steel 1-1/4" 1-11/16-12" 1-11/16-12" 7/16-20" 1.024" 1.024" 3.070" 1.875" 1.750"
FS6564-24-24-04 Steel 1-1/2" 2-12" 2-12" 7/16-20" 1.260" 1.260" 3.220" 2.125" 2.250"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
