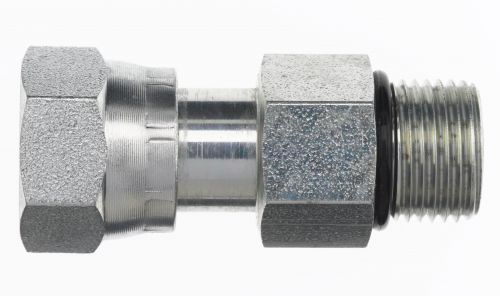

FS6540-10-10-O by Brennan Inc. | -10 Female Face Seal Swivel x -10 Male O-Ring Boss | Straight | Steel
Brennan Inc.
O-Ring Face Seal Fittings: FS6540 - Female Face Seal Swivel x Male O-Ring Boss Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.82 |
| 40–79 | $16.12 |
| 80+ | $14.22 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | TubeO.D | AThread | BMORB | ADrill | BDrill | lLength | CHex | HHex |
| FS6540-04-04-O | Steel | 1/4" | 9/16-18" | 7/16-20" | 0.165" | 0.172" | 1.460" | 0.687" | 0.625" |
| FS6540-06-06-O | Steel | 3/8" | 11/16-16" | 9/16-18" | 0.264" | 0.264" | 1.580" | 0.812" | 0.750" |
| FS6540-06-08-O | Steel | - | - | - | - | - | - | - | - |
| FS6540-08-06-O | Steel | 1/2" | 13/16-16" | 9/16-18" | 0.358" | 0.264" | 1.862" | 0.938" | 0.875" |
| FS6540-08-08-O | Steel | 1/2" | 13/16-16" | 3/4-16" | 0.378" | 0.378" | 1.941" | 0.938" | 0.875" |
| FS6540-10-10-O | Steel | 5/8" | 1-14" | 7/8-14" | 0.453" | 0.484" | 2.120" | 1.125" | 1.062" |
| FS6540-10-12-O | Steel | 5/8" | 1-14" | 1-1/16-12" | 0.453" | 0.609" | 2.218" | 1.125" | 1.250" |
| FS6540-12-12-O | Steel | 3/4" | 1-3/16-12" | 1-1/16-12" | 0.547" | 0.609" | 2.348" | 1.375" | 1.250" |
| FS6540-16-16-O | Steel | 1" | 1-7/16-12" | 1-5/16-12" | 0.783" | 0.811" | 2.658" | 1.625" | 1.500" |
| FS6540-20-20-O | Steel | 1-1/4" | 1-11/16-12" | 1-5/8-12" | 1.024" | 1.024" | 2.658" | 1.875" | 1.875" |
| FS6540-24-24-O | Steel | 1-1/2" | 2-12" | 1-7/8-12" | 1.260" | 1.260" | 2.658" | 2.250" | 2.125" |
| FS6540-06-06-O-SS | Stainless Steel | 3/8" | 11/16-16" | 9/16-18" | 0.264" | 0.264" | 1.580" | 0.812" | 0.750" |
| FS6540-08-08-O-SS | Stainless Steel | 1/2" | 13/16-16" | 3/4-16" | 0.378" | 0.378" | 1.941" | 0.938" | 0.875" |
| FS6540-20-20-O-SS | Stainless Steel | 1-1/4" | 1-11/16-12" | 1-5/8-12" | 1.024" | 1.024" | 2.658" | 1.875" | 1.875" |
