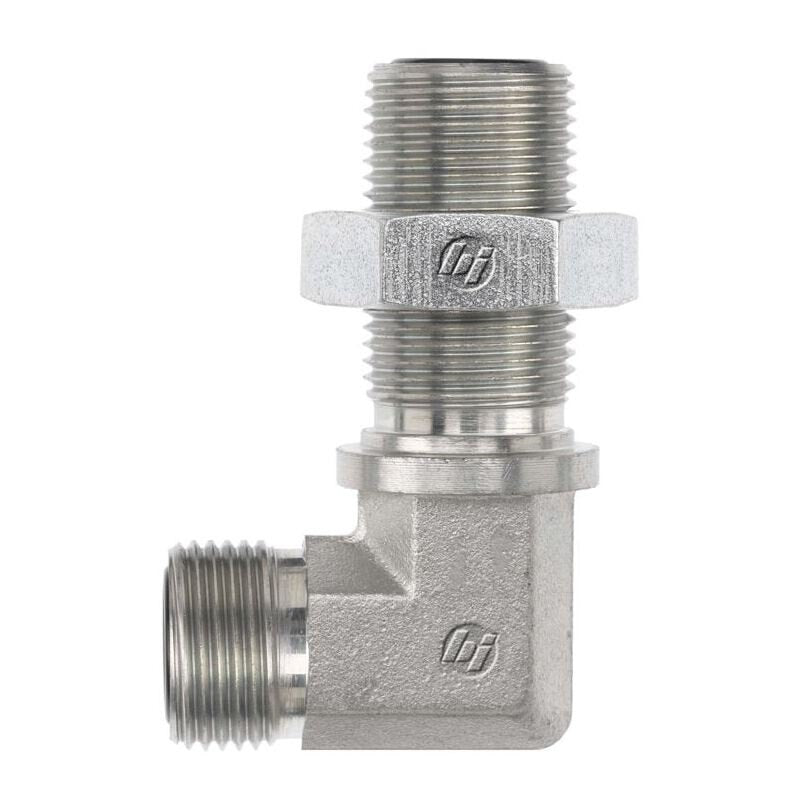

FS2701-LN-06-08-FG by Brennan Inc. | -06 Male Face Seal x -08 Male Face Seal Bulkhead with Locknut | 90° Elbow | Forged Steel
Brennan Inc.
O-Ring Face Seal Fittings: FS2701-LN - Male Face Seal x Male Face Seal Bulkhead with Locknut 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.53 |
| 40–79 | $12.23 |
| 80+ | $10.79 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A1 Thread | A2Thread | A1 Drill | A2 Drill | RLength | SLength | JJFlats |
| FS2701-LN-04-04-FG | Forged Steel | 1/4" | 9/16-18" | 9/16-18" | 0.172" | 0.172" | 0.890" | 1.850" | 0.562" |
| FS2701-LN-06-06-FG | Forged Steel | 3/8" | 11/16-16" | 11/16-16" | 0.264" | 0.264" | 1.020" | 2.050" | 0.750" |
| FS2701-LN-06-08-FG | Forged Steel | 3/8-1/2" | 11/16-16" | 13/16-16" | 0.264" | 0.378" | 1.080" | 2.180" | 0.750" |
| FS2701-LN-08-08-FG | Forged Steel | 1/2" | 13/16-16" | 13/16-16" | 0.378" | 0.378" | 1.140" | 2.180" | 0.750" |
| FS2701-LN-10-10-FG | Forged Steel | 5/8" | 1-14" | 1-14" | 0.484" | 0.484" | 1.360" | 2.480" | 1.062" |
| FS2701-LN-12-12-FG | Forged Steel | 3/4" | 1-3/16-12" | 1-3/16-12" | 0.609" | 0.609" | 1.520" | 2.650" | 1.188" |
| FS2701-LN-16-16-FG | Forged Steel | 1" | 1-7/16-12" | 1-7/16-12" | 0.811" | 0.811" | 1.670" | 2.800" | 1.438" |
| FS2701-LN-20-20-FG | Forged Steel | 1-1/4" | 1-11/16-12" | 1-11/16-12" | 1.024" | 1.024" | 1.790" | 2.970" | 1.625" |
