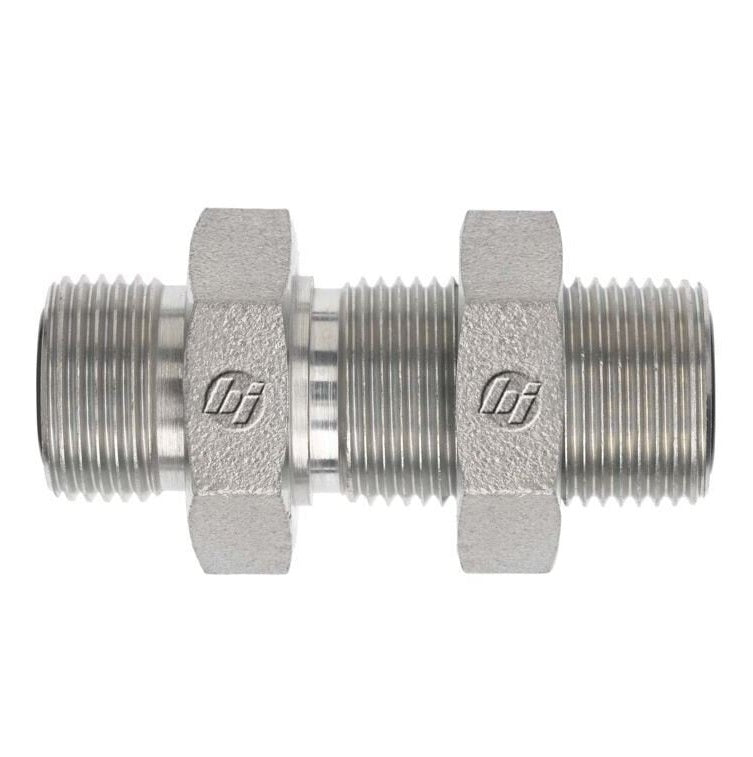

FS2700-LN-20-20 by Brennan Inc. | -20 Male Face Seal x -20 Male Face Seal Bulkhead with Locknut | Straight | Steel
Brennan Inc.
O-Ring Face Seal Fittings: FS2700-LN - Male Face Seal x Male Face Seal Bulkhead with Locknut Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.09 |
| 40–79 | $40.77 |
| 80+ | $35.98 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A1 Thread | A2Thread | A1 Drill | A2 Drill | GGLength | BHex |
| FS2700-LN-04-04 | Steel | 1/4" | 9/16-18" | 9/16-18" | 0.172" | 0.172" | 1.900" | 0.812" |
| FS2700-LN-06-06 | Steel | 3/8" | 11/16-16" | 11/16-16" | 0.264" | 0.264" | 2.090" | 1.000" |
| FS2700-LN-06-08 | Steel | 3/8-1/2" | 11/16-16" | 13/16-16" | 0.264" | 0.378" | 2.240" | 1.125" |
| FS2700-LN-08-08 | Steel | 1/2" | 13/16-16" | 13/16-16" | 0.378" | 0.378" | 2.300" | 1.125" |
| FS2700-LN-08-10 | Steel | - | - | - | - | - | - | - |
| FS2700-LN-10-08 | Steel | 5/8" | 1-14" | 13/16-16" | 0.484" | 0.378" | 2.460" | 1.312" |
| FS2700-LN-10-10 | Steel | 5/8" | 1-14" | 1-14" | 0.484" | 0.484" | 2.620" | 1.312" |
| FS2700-LN-12-12 | Steel | 3/4" | 1-3/16-12" | 1-3/16-12" | 0.609" | 0.609" | 2.720" | 1.500" |
| FS2700-LN-16-16 | Steel | 1" | 1-7/16-12" | 1-7/16-12" | 0.811" | 0.811" | 2.760" | 1.750" |
| FS2700-LN-20-20 | Steel | 1-1/4" | 1-11/16-12" | 1-11/16-12" | 1.024" | 1.024" | 2.760" | 2.000" |
| FS2700-LN-24-24 | Steel | 1-1/2" | 2-12" | 2-12" | 1.260" | 1.260" | 2.760" | 2.375" |
