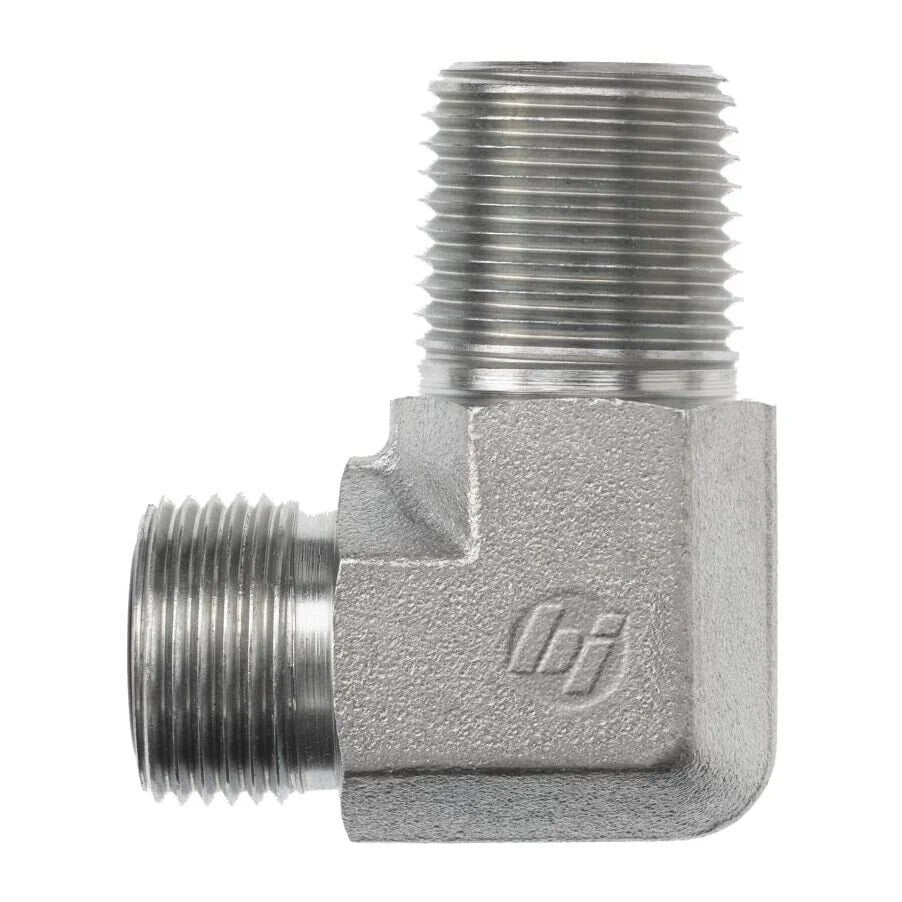

FS2501-06-02-FG by Brennan Inc. | -06 Male Face Seal x -02 Male Pipe | 90° Elbow | Forged Steel
Brennan Inc.
O-Ring Face Seal Fittings: FS2501 - Male Face Seal x Male Pipe 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.37 |
| 40–79 | $11.19 |
| 80+ | $9.87 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A Thread | B Thread | A Drill | B Drill | MLength | NLength | JJFlats |
| FS2501-04-02-FG | Forged Steel | 1/4" | 9/16-18" | 1/8-27" | 0.172" | 0.188" | 0.850" | 0.800" | 0.562" |
| FS2501-04-04-FG | Forged Steel | 1/4" | 9/16-18" | 1/4-18" | 0.172" | 0.281" | 0.850" | 1.120" | 0.562" |
| FS2501-04-06-FG | Forged Steel | 1/4" | 9/16-18" | 3/8-18" | 0.172" | 0.406" | 0.970" | 1.220" | 0.750" |
| FS2501-06-02-FG | Forged Steel | 3/8" | 11/16-16" | 1/8-27" | 0.264" | 0.188" | 0.980" | 0.900" | 0.750" |
| FS2501-06-04-FG | Forged Steel | 3/8" | 11/16-16" | 1/4-18" | 0.264" | 0.281" | 0.980" | 1.090" | 0.750" |
| FS2501-06-06-FG | Forged Steel | 3/8" | 11/16-16" | 3/8-18" | 0.264" | 0.406" | 0.980" | 1.220" | 0.750" |
| FS2501-06-08-FG | Forged Steel | 3/8" | 11/16-16" | 1/2-14" | 0.264" | 0.531" | 1.150" | 1.470" | 0.875" |
| FS2501-08-04-FG | Forged Steel | 1/2" | 13/16-16" | 1/4-18" | 0.378" | 0.281" | 1.100" | 1.220" | 0.750" |
| FS2501-08-06-FG | Forged Steel | 1/2" | 13/16-16" | 3/8-18" | 0.378" | 0.406" | 1.100" | 1.220" | 0.750" |
| FS2501-08-08-FG | Forged Steel | 1/2" | 13/16-16" | 1/2-14" | 0.378" | 0.531" | 1.100" | 1.470" | 0.875" |
| FS2501-08-12-FG | Forged Steel | 1/2" | 13/16-16" | 3/4-14" | 0.378" | 0.719" | 1.320" | 1.590" | 1.062" |
| FS2501-10-06-FG | Forged Steel | 5/8" | 1-14" | 3/8-18" | 0.484" | 0.406" | 1.310" | 1.400" | 1.062" |
| FS2501-10-08-FG | Forged Steel | 5/8" | 1-14" | 1/2-14" | 0.484" | 0.531" | 1.310" | 1.470" | 1.062" |
| FS2501-10-12-FG | Forged Steel | 5/8" | 1-14" | 3/4-14" | 0.484" | 0.719" | 1.310" | 1.590" | 1.062" |
| FS2501-12-08-FG | Forged Steel | 3/4" | 1-3/16-12" | 1/2-14" | 0.609" | 0.531" | 1.470" | 1.590" | 1.188" |
| FS2501-12-12-FG | Forged Steel | 3/4" | 1-3/16-12" | 3/4-14" | 0.609" | 0.719" | 1.470" | 1.590" | 1.188" |
| FS2501-12-16-FG | Forged Steel | 3/4" | 1-3/16-12" | 1-11-1/2" | 0.609" | 0.938" | 1.620" | 1.970" | 1.312" |
| FS2501-16-12-FG | Forged Steel | 1" | 1-7/16-12" | 3/4-14" | 0.811" | 0.719" | 1.640" | 1.780" | 1.438" |
| FS2501-16-16-FG | Forged Steel | 1" | 1-7/16-12" | 1-11-1/2" | 0.811" | 0.938" | 1.640" | 1.970" | 1.438" |
| FS2501-16-20-FG | Forged Steel | 1" | 1-7/16-12" | 1-1/4-11-1/2" | 0.811" | 1.250" | 1.760" | 2.380" | 1.625" |
| FS2501-20-16-FG | Forged Steel | 1-1/4" | 1-11/16-12" | 1-11-1/2" | 1.024" | 0.938" | 1.760" | 2.350" | 1.625" |
| FS2501-20-20-FG | Forged Steel | 1-1/4" | 1-11/16-12" | 1-1/4-11-1/2" | 1.024" | 1.250" | 1.760" | 2.380" | 1.625" |
| FS2501-24-24-FG | Forged Steel | 1-1/2" | 2-12" | 1-1/2-11-1/2" | 1.260" | 1.500" | 1.920" | 2.640" | 1.875" |
| FS2501-04-04-SS | Stainless Steel | 1/4" | 9/16-18" | 1/4-18" | 0.172" | 0.281" | 0.850" | 1.120" | 0.562" |
| FS2501-06-06-SS | Stainless Steel | 3/8" | 11/16-16" | 3/8-18" | 0.264" | 0.406" | 0.980" | 1.220" | 0.750" |
| FS2501-06-08-SS | Stainless Steel | 3/8" | 11/16-16" | 1/2-14" | 0.264" | 0.531" | 1.150" | 1.470" | 0.875" |
| FS2501-08-04-SS | Stainless Steel | 1/2" | 13/16-16" | 1/4-18" | 0.378" | 0.281" | 1.100" | 1.220" | 0.750" |
| FS2501-08-06-SS | Stainless Steel | 1/2" | 13/16-16" | 3/8-18" | 0.378" | 0.406" | 1.100" | 1.220" | 0.750" |
