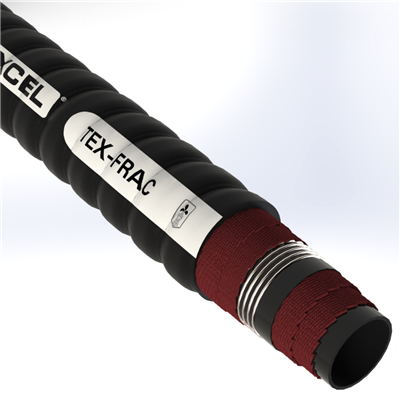

FRAC-8.0-100N by Texcel | TEX-FRAC Series | Frac Tank Hose | 8" Hose ID | 150 PSI | 25 in/Hg Vacuum Rated | Black
Texcel
TEX-FRAC Series | Frac Tank Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $115.83 |
| 20–59 | $104.74 |
| 60+ | $92.42 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A heavy-duty frac tank hose ideal for handling salt and fresh water, tank bottoms, crude oil, drilling muds and mild solutions of hydrochloric acids. | Tube: | Black, specially compounded elastomer; low oil swell |
| Cover: | Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated) | Reinforcement: | High tensile tire cord plies; single helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +190°F |
| Branding: | TEXCEL® TEX-FRAC - FRAC TANK HOSE NOT FOR REFINED FUELS 150 PSI W.P. | Safety Note: | Not recommended for refined petroleum products |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| FRAC-8.0-100N | 8" | 9" | 150 psi | 25 in./HG | 18" | 8.17 lbs |
