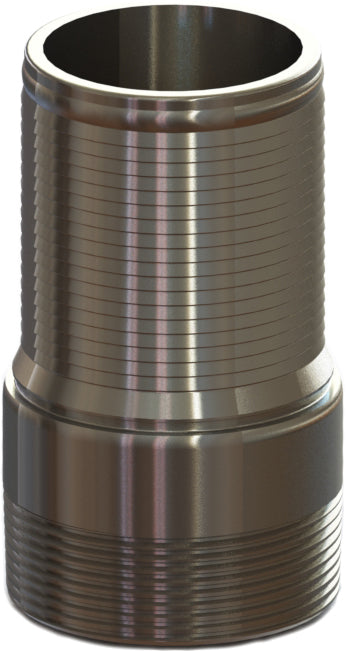

FRAC-16C by Campbell Fittings | SCH. 80 Threaded Shank | 4" Male NPT Thread x 4" Hose Barb | 400 PSI | Plated Steel

FRAC-16C by Campbell Fittings | SCH. 80 Threaded Shank | 4" Male NPT Thread x 4" Hose Barb | 400 PSI | Plated Steel

Sale price$87.03

by Campbell
Crimpnology Nipples:FRAC SCH. 80 Threaded Shank
Buy More, Save More!
Quantity Price Each
5–19 $81.81
20–59 $73.98
60+ $65.27
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 4in Male NPT
  • 4in Hose Barb
Material(s):
  • Plated Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles
Special Features:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
  • Long Shank Crimpnology nipples provide excellent sealing and retention for high-pressure application (See ratings chart)
Part Number Hose Size
FRAC-16C 4"
