FPX-08-12-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 3/4" Female NPSM Swivel | Carbon Steel
Kurt Hydraulics
FPX - NPSM Female Pipe Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $73.05 |
| 20–59 | $66.05 |
| 60+ | $58.28 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

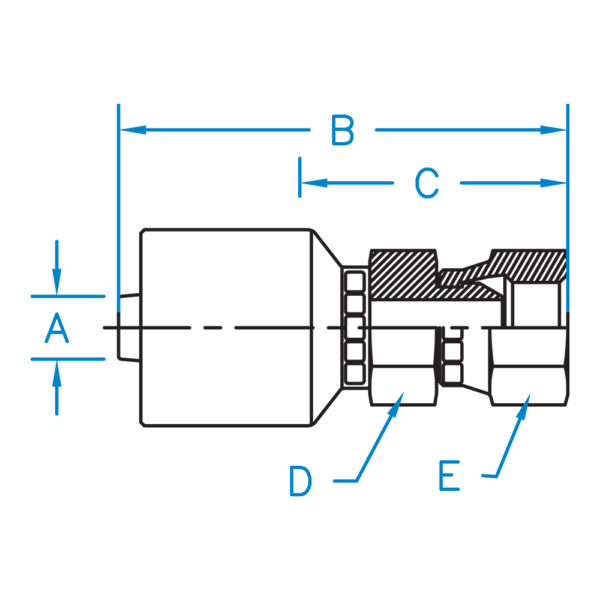

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| FPX-04-02-K2 | 1/4" | 2.01" | 0.95" | 9/16" | 9/16" | 1/8 – 27 |
| FPX-04-04-K2 | 1/4" | 1.90" | 1.00" | 9/16" | 3/4" | 1/4 – 18 |
| FPX-04-06-K2 | 1/4" | 2.08" | 1.02" | 5/8" | 7/8" | 3/8 – 18 |
| FPX-06-04-K2 | 3/8" | 2.51" | 1.14" | 11/16" | 3/4" | 1/4 – 18 |
| FPX-06-06-K2 | 3/8" | 2.06" | 1.00" | 11/16" | 7/8" | 3/8 – 18 |
| FPX-08-08 | 3/8" | 2.16" | 1.10" | 7/8" | 1" | 1/2 – 14 |
| FPX-08-12-K2 | 1/2" | 2.93" | 1.59" | 1" | 1-1/4" | 3/4 – 14 |
