FPX-04-04 by Kurt Hydraulics | Female NPSM | Swivel | for 1/4" Hose ID

FPX-04-04 by Kurt Hydraulics | Female NPSM | Swivel | for 1/4" Hose ID

Minimum Order Quantity: 5 Units

Sale price$7.74

by Kurt Hydraulics
FPX - Female Pipe NPSM Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
20–39 $7.28
40–79 $6.58
80+ $5.81
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1/4in Hose Barb
  • 1/4in Female NPSM

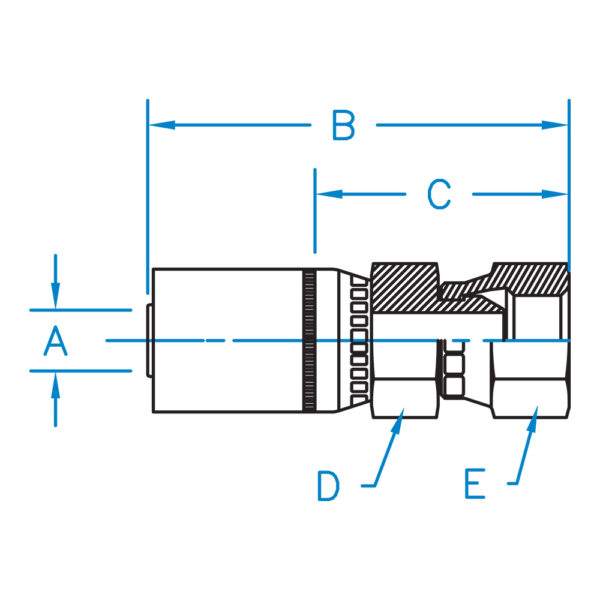

Part Number A B C D E Hose ID
(In)		 Thread
FPX-03-04 N/A N/A N/A N/A N/A N/A N/A
FPX-04-02 N/A N/A N/A N/A N/A N/A N/A
FPX-04-04 0.250 2.149 1.089 9/16 3/4 1/4" 1/4-18
FPX-06-06 0.375 2.344 1.089 11/16 3/4 3/8" 3/8-18
FPX-06-08 0.375 2.849 1.349 7/8 1.00 3/8" 3/4-14
FPX-08-08 0.500 2.699 1.432 11/16 7/8 1/2" 1/2-14
FPX-08-12 0.500 N/A N/A N/A N/A 3/4" 3/4-14
FPX-12-12 0.750 2.927 1.699 1.000 1.000 3/4" 3/4-14
FPX-16-16 1.000 3.292 1.780 1-1/8 1-1/4 1" 1-11-1/2
FPX-20-20 1.250 4.018 2.018 1-3/4 2.000 1-1/4" 1-1/4 - 11-1/2

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
