FP-04-02-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/8" Female NPTF | Carbon Steel
Kurt Hydraulics
FP - NPTF Female Pipe Rigid
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $24.83 |
| 40–79 | $22.46 |
| 80+ | $19.82 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):

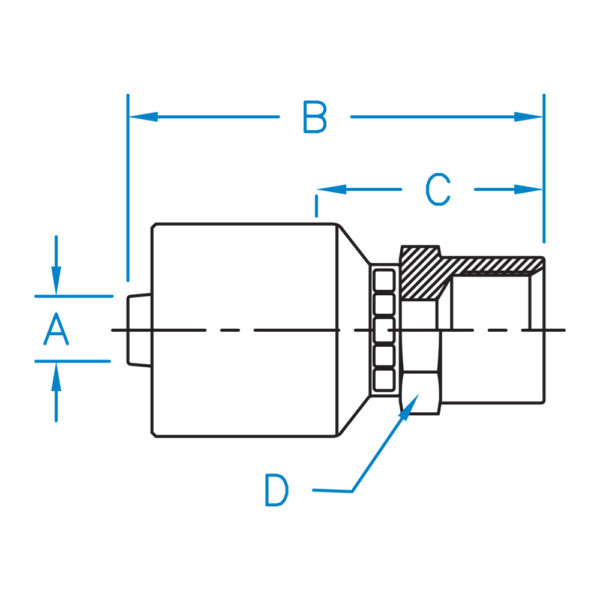

| Part Number | Hose I.D. (in.) | B | C | D | Thread |
|---|---|---|---|---|---|
| FP-04-02-K2 | 1/4" | 1.98" | 0.92" | 5/8" | 1/8 – 27 |
| FP-04-04-K2 | 1/4" | 2.06" | 1.00" | 11/16" | 1/4 – 18 |
| FP-04-06-K2 | 1/4" | 2.16" | 1.10" | 7/8" | 3/8 – 18 |
| FP-06-04-K2 | 3/8" | 2.49" | 1.12" | 11/16" | 1/4 – 18 |
| FP-06-06-K2 | 3/8" | 2.34" | 1.11" | 7/8" | 3/8 – 18 |
| FP-06-08-K2 | 3/8" | 2.64" | 1.27" | 1" | 1/2 – 14 |
| FP-08-06-K2 | 1/2" | 2.51" | 1.21" | 7/8" | 3/8 – 18 |
| FP-08-08-K2 | 1/2" | 2.67" | 1.33" | 1" | 1/2 – 14 |
