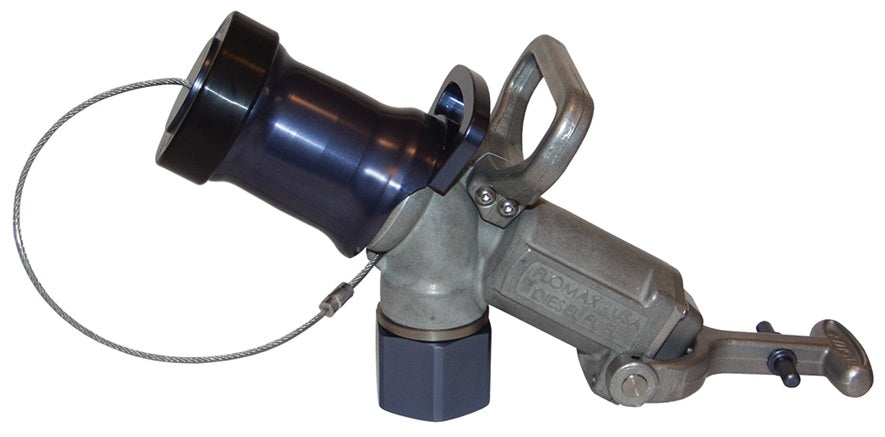

FN600 by Dixon Valve | FloMAX Diesel Fueling System | Diesel Fuel Nozzle | Dog Latch Mechanism With Sealing Plug | 1-1/2" Female NPT

FN600 by Dixon Valve | FloMAX Diesel Fueling System | Diesel Fuel Nozzle | Dog Latch Mechanism With Sealing Plug | 1-1/2" Female NPT

Sale price$1,847.35

Dixon Valve
FloMAX Diesel Fueling System | Diesel Fuel Nozzle

Designed for on-site refueling of construction, mining, forestry, and agricultural equipment.
Buy More, Save More!
Quantity Price Each
4–7 $1,736.51
8–14 $1,662.62
15+ $1,477.88
Discounts applied in cart/checkout.
Compatibility & Interchange:
  • Interchanges with Caterpillar® and Wiggins systems.
Features:
  • 1-1/2" Female NPT.
  • Tested to 180 gallons per minute.
Construction:
  • Investment cast aluminum housing.
  • Anodized aluminum non-wear parts.
  • Stainless steel wear components.
  • Delron® bushings eliminate metal-to-metal wear.
  • Plug/bumper assembly gives complete nose seal.
  • Integrated high-flow swivel and sealing plug.
Part Number Description Cross Over Part Numbers
Wiggins FastFill
FN600 Dog Latch Mechanism With Sealing Plug ZZF150 N150CP
FN600BL Ball Lock With Sealing Plug ZZ9A1 N150SL
FN600B-PLUG Sealing Plug For FN600 - -
FN600B Sealing Plug For FN600BL - -

Product Data:

Brand:
  • FloMAX
Series:
  • FN600 Series
Ends Configuration:
  • 1-1/2in Female NPT

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
