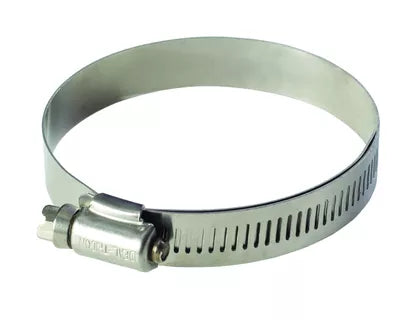

FLX2582-0064 by FlexFab | 2582 Series | Lined Worm Gear Clamps | 3.56" Min Dia | 4.50" Max Dia | 10 Per pack
FlexFab

FLX2582-0064 by FlexFab | 2582 Series | Lined Worm Gear Clamps | 3.56" Min Dia | 4.50" Max Dia | 10 Per pack

Sale price$41.74

Flexfab Industrial Hose | 2582 Series | Lined Worm Gear Clamps

Package Quantity: 10 units

Product Data:

Series:
  • 2582 Series
Minimum Clamp I.D.:

3.56"

Maximum Clamp I.D.:

4.50"
Overview:
  • Recommended for Silicone Coolant and Heater Hoses
  • Lined clamps are designed for use with silicone rubber and other soft hose applications. The liner protects the hose surface and prevents it from extruding or shearing through the band notches as the clamp is tightened.
Specifications:
  • All 300 grade stainless steel lined worm gear clamps
  • Hex Head: 5/16"
  • Band Width: 9/16"
Applications:
  • Recommended for silicone coolant hose, heater hose, marine, and silicone tubing
  • Resists salt water and may be used in marine applications
Coolant And Heater Hose Clamping Instructions:
  • Worm gear or constant torque type stainless steel clamps with inner liner are recommended for silicone heater and coolant hose. Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs. Do not use serrated, slotted, or wire type clamps.
Part Number Min. Dia. (in.) Max. Dia.(in.) PackSize Weightlbs - Per 10
FLX2582-0006 0.50" 0.88" 10 Pieces 0.5 lbs
FLX2582-0008 0.63" 1.00" 10 Pieces 0.5 lbs
FLX2582-0010 0.75" 1.06" 10 Pieces 0.5 lbs
FLX2582-0012 0.88" 1.25" 10 Pieces 0.5 lbs
FLX2582-0016 1.00" 1.50" 10 Pieces 0.5 lbs
FLX2582-0020 1.13" 1.75" 10 Pieces 0.5 lbs
FLX2582-0024 1.25" 2.00" 10 Pieces 0.5 lbs
FLX2582-0028 1.31" 2.25" 10 Pieces 0.5 lbs
FLX2582-0032 1.56" 2.50" 10 Pieces 0.5 lbs
FLX2582-0036 1.81" 2.75" 10 Pieces 0.5 lbs
FLX2582-0040 2.06" 3.00" 10 Pieces 0.5 lbs
FLX2582-0044 2.31" 3.25" 10 Pieces 0.5 lbs
FLX2582-0048 2.56" 3.50" 10 Pieces 0.5 lbs
FLX2582-0052 2.81" 3.75" 10 Pieces 0.5 lbs
FLX2582-0056 3.06" 4.00" 10 Pieces 0.5 lbs
FLX2582-0060 3.31" 4.25" 10 Pieces 0.5 lbs
FLX2582-0064 3.56" 4.50" 10 Pieces 1 lbs
FLX2582-0072 4.06" 5.00" 10 Pieces 1 lbs
*Specifications for reference only.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
