FJX90M-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Female 37° JIC Swivel | Medium Drop | 90° Elbow | Carbon Steel

Sale price$49.05

Kurt Hydraulics
37° JIC Female 90° Medium Drop Bent Tube Female Swivel


Buy More, Save More!
Quantity Price Each
10–39 $46.11
40–79 $41.69
80+ $36.79
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Hose Barb
  • 5/8in Female JIC

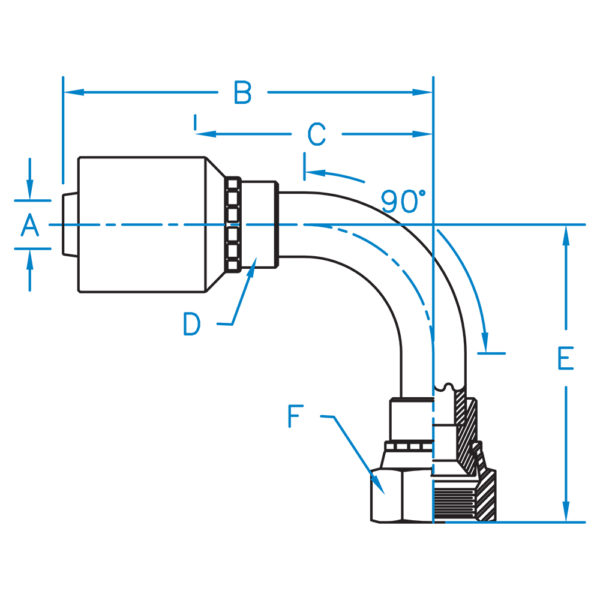

Part Number Hose I.D. (in.) B C D E F Thread
FJX90M-04-04-K2 1/4" 2.70" 1.64" 9/16" 1.26" 9/16" 7/16" – 20
FJX90M-04-06-K2 1/4" 2.84" 1.78" 5/8" 1.50" 11/16" 9/16" – 18
FJX90M-06-06-K2 3/8" 3.17" 1.80" 11/16" 1.50" 11/16" 9/16" – 18
FJX90M-08-08-K2 1/2" 3.49" 2.15" 7/8" 1.61" 7/8" 3/4" – 16
FJX90M-08-10-K2 1/2" 2.95" 1.61" 13/16" 1.85" 1" 7/8" – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
