FJX90-08-06-W by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | 90 Degree | Swivel | for 1/2" Hose ID
by Kurt Hydraulics
FJX90-W - 37 deg. JIC Female 90 deg. Bent Tube Swivel
FJX90-W - 37 deg. JIC Female 90 deg. Bent Tube Swivel
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $19.11 |
| 40–79 | $17.28 |
| 80+ | $15.25 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

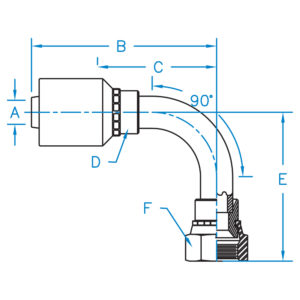

| Part Number | A | B | C | D | E | Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|
| FJX90-06-04-W | 0.375 | 3.025 | 1.655 | 9/16 | 0.830 | 3/8" | 7/16-20 |
| FJX90-06-06-W | 0.375 | 3.03 | 1.8 | 11/16 | 0.91 | 3/8" | 9/16-18 |
| FJX90M-06-06-W | 0.375 | 3.174 | 1.804 | 11/16 | 1.500 | 3/8" | 9/16-18 |
| FJX90-06-08-W | 0.375 | 2.640 | 1.300 | 7/8 | 1.380 | 3/8" | 3/4-16 |
| FJX90-08-06-W | 0.500 | 2.640 | 1.300 | 7/8 | 2.430 | 1/2" | 9/16-18 |
| FJX90-08-08-W | 0.500 | 2.770 | 1.430 | 1.000 | 1.630 | 1/2" | 3/4-16 |
| FJX90M-08-08-W | 0.500 | 3.486 | 2.145 | 7/8 | 1.614 | 1/2" | 3/4-16 |
| FJX90-08-10-W | 0.500 | 4.820 | 3.030 | 1-1/4 | 2.650 | 1/2" | 7/8-14 |
| FJX90-08-12-W | 0.500 | 5.220 | 3.110 | 1-1/2 | 2.770 | 1/2" | 1-1/16-12 |
| FJX90-10-10-W | 0.625 | 3.82 | 1.72 | 2.000 | 1.23 | 5/8" | 7/8-14 |
| FJX90-10-12-W | 0.625 | 6.230 | 3.780 | 2.000 | 3.330 | 5/8" | 1-1/16-12 |
| FJX90-12-12-W | 0.750 | 6.230 | 2.725 | 2-1/4 | 2.574 | 3/4" | 1-1/16-12 |
| FJX90-12-16-W | 0.750 | 6.740 | 4.140 | 2-1/4 | 3.910 | 3/4" | 1-5/16-12 |
| FJX90-16-16-W | 1.000 | 8.260 | 3.050 | 2-7/8 | 2.800 | 1.000" | 1-5/16-12 |
| FJX90-16-20-W | 1.000 | 5.220 | 3.050 | 2.000 | 2.800 | 1.000" | 1-5/18-12 |
| FJX90-20-20-W | 1.250 | 6.230 | 3.902 | 2.000 | 3.240 | 1-1/4" | 1-5/8-12 |
| FJX90-20-24-W | 1.250 | 6.230 | 3.780 | 2-1/4 | 3.360 | 1-1/4" | 1-7/8-12 |
| FJX90-24-24-W | 1.500 | 6.740 | 4.140 | 2-1/4 | 3.940 | 1-1/2" | 1-7/8-12 |
| FJX90-32-32-W | 2.000 | 8.31 | 5.010 | 2-7/8 | 6.16 | 2.000" | 2-1/2-12 |
