FJX45-14-16-R5 by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | 45 Degree Bent Tube | Swivel | for 7/8" Hose ID
by Kurt Hydraulics
FJX45-R5 - 37 deg. JIC Female 45 deg. Bent Tube Swivel - R5 Couplings
FJX45-R5 - 37 deg. JIC Female 45 deg. Bent Tube Swivel - R5 Couplings
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $46.07 |
| 40–79 | $41.66 |
| 80+ | $36.76 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Special Properties:

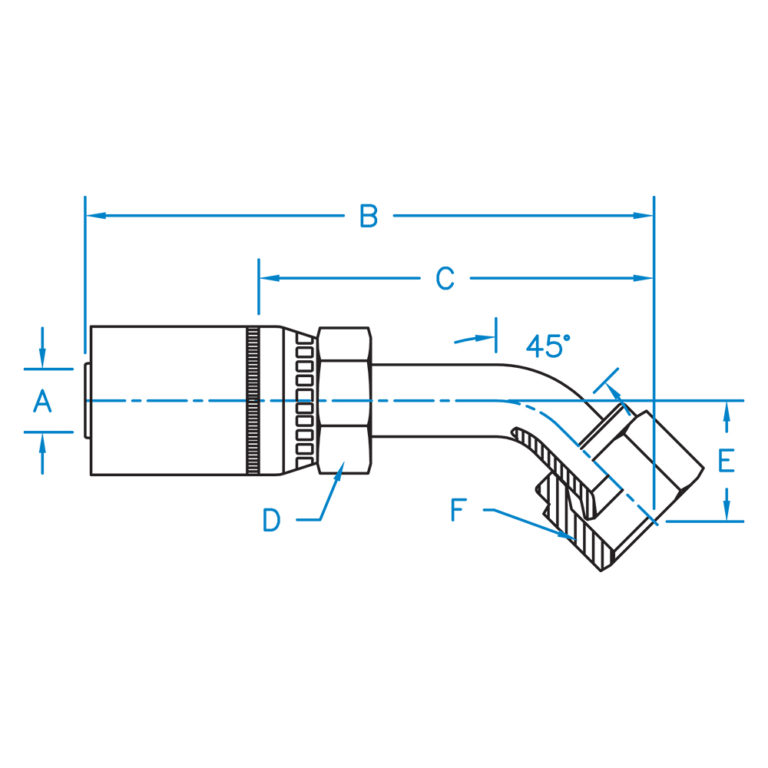

| Part Number | A | B | C | D | E | F | Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FJX45-03-04-R5 | 0.187 | N/A | N/A | N/A | N/A | N/A | 3/16" | 7/16-20 |
| For FJX45-04-04-R5 Use: FJX45-04-04 | ||||||||
| For FJX45-04-05-R5 Use: FJX45-04-05 | ||||||||
| For FJX45-04-06-R5 Use: FJX45-04-06 | ||||||||
| FJX45-05-04-R5 | 0.312 | 3.185 | 1.875 | 5/8 | 1.394 | 9/16 | 5/16" | 7/16-20 |
| FJX45-05-06-R5 | 0.312 | 3.294 | 1.684 | 5/8 | 0.433 | 11/16 | 5/16" | 9/16-18 |
| FJX45-07-06-R5 | 0.437 | 3.424 | 1.954 | 3/4 | 0.433 | 11/16 | 7/16" | 9/16-18 |
| FJX45-07-08-R5 | 0.437 | 3.786 | 2.316 | 7/8 | 0.590 | 7/8 | 7/16" | 3/4-16 |
| For FJX45-08-08-R5 Use: FJX45-08-08 | ||||||||
| For FJX45-08-10-R5 Use: FJX45-08-10 | ||||||||
| FJX45-10-10-R5 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| FJX45-10-12-R5 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| FJX45-14-16-R5 | 0.875 | 4.750 | 2.312 | 1-1/2 | 2.500 | 1-1/2 | 7/8" | 1-5/16-12 |
