FJX45-06-06-SST by Kurt Hydraulics | Female JIC | 45° Elbow | Swivel | PTFE Coupling | for 3/8" Hose ID
by Kurt Hydraulics
FJX45-SST - 37 deg. JIC Female 45 deg. Bent Tube Swivel - PTFE Couplings
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $13.43 |
| 40–79 | $12.15 |
| 80+ | $10.72 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Special Properties:

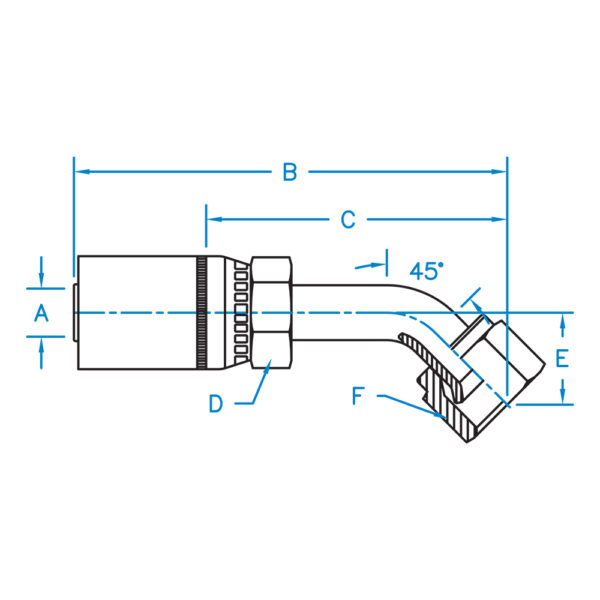

| Part Number | A | B | C | D | E | F |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FJX45-03-04-SST | 0.187 | 1.849 | 1.183 | 9/16 | 0.467 | 9/16 | 3/16" | 7/16-20 |
| FJX45-04-04-SST | 0.250 | 2.565 | 1.473 | 5/8 | 0.467 | 9/16 | 1/4" | 7/16-20 |
| FJX45-04-05-SST | 0.250 | 2.565 | 1.473 | 5/8 | 0.467 | 9/16 | 1/4" | 1/2-20 |
| FJX45-04-06-SST | 0.250 | 2.921 | 1.500 | 3/4 | 0.588 | 11/16 | 1/4" | 9/16-18 |
| FJX45-05-04-SST | 0.312 | 3.185 | 1.875 | 5/8 | 0.394 | 9/16 | 5/16" | 7/16-20 |
| FJX45-05-06-SST | 0.312 | 3.294 | 1.984 | 5/8 | 0.433 | 11/16 | 5/16" | 9/16-18 |
| FJX45-06-04-SST | 0.375 | 2.565 | 1.473 | 5/8 | 0.467 | 9/16 | 3/8" | 7/16-20 |
| FJX45-06-06-SST | 0.375 | 2.921 | 1.500 | 3/4 | 0.588 | 11/16 | 3/8" | 9/16-18 |
| FJX45-07-06-SST | 0.437 | 3.424 | 1.954 | 3/4 | 0.433 | 11/16 | 7/16" | 9/16-18 |
| FJX45-07-08-SST | 0.437 | 3.786 | 2.316 | 7/8 | 0.590 | 7/8 | 7/16" | 3/4-16 |
| FJX45-08-08-SST | 0.500 | 3.284 | 1.625 | 7/8 | 0.713 | 7/8 | 1/2" | 3/4-16 |
| FJX45-08-10-SST | 0.500 | 3.523 | 1.929 | 1.000 | 0.839 | 1.000 | 1/2" | 7/8-14 |
| FJX45-10-10-SST | 0.625 | 3.523 | 1.835 | 1.000 | 0.839 | 1.000 | 5/8" | 7/8-14 |
| FJX45-10-12-SST | 0.625 | 4.329 | 2.437 | 1-1/4 | 1.180 | 1-1/4 | 5/8" | 1-1/16-12 |
| FJX45-12-12-SST | 0.750 | 4.329 | 2.437 | 1-1/4 | 1.180 | 1-1/4 | 3/4" | 1-1/16-12 |
| FJX45-16-16-SST | 1.000 | 4.875 | 2.875 | 1-1/2 | 0.925 | 1-1/2 | 1.000" | 1-5/16-12 |
